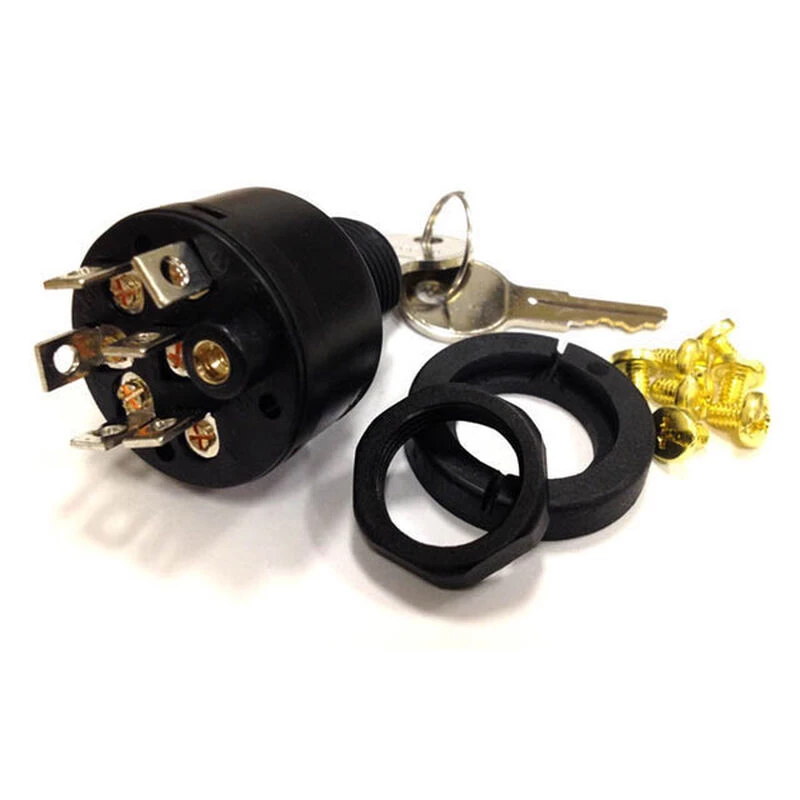

SIERRA 4-Position Push To Choke Magneto Ignition Switch, Accessory-Off-Run-Start

This magneto ignition switch is a direct replacement for Seadog OEM Part Number 420386-1.

Sierra’s Polyester Ignition Switch is impact- and corrosion-resistant and installs in a standard 7/8″dia. hole. This four-position magneto switch provides Accessory-Off-Run-Start with push-to-choke. Includes two keys and different key codes for added security.

Key Features

• Maximum corrosion protection eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Four-position magneto switch
• Push-to-choke
• Exact OEM replacement for Seadog Part Number 420386-1

Specifications

• Material: Marine-grade glass-filled polyester
• Length: Short, 5/8″ maximum panel thickness
• Hole Size: 7/8″
• Terminal Type: 6 screw tab, 1 boss screw
• Back Up Nut: Plastic
• Face Nut: Hex black plastic
• Choke: Push-to-choke
• Positions: Accessory-Off-Run-Start

Rated

• Ignition: 15A @ 12V DC
• Solenoid: 30A @ 12V DC
• Choke: 7A @ 12V DC
• Accessory: 15A @ 12V DC
