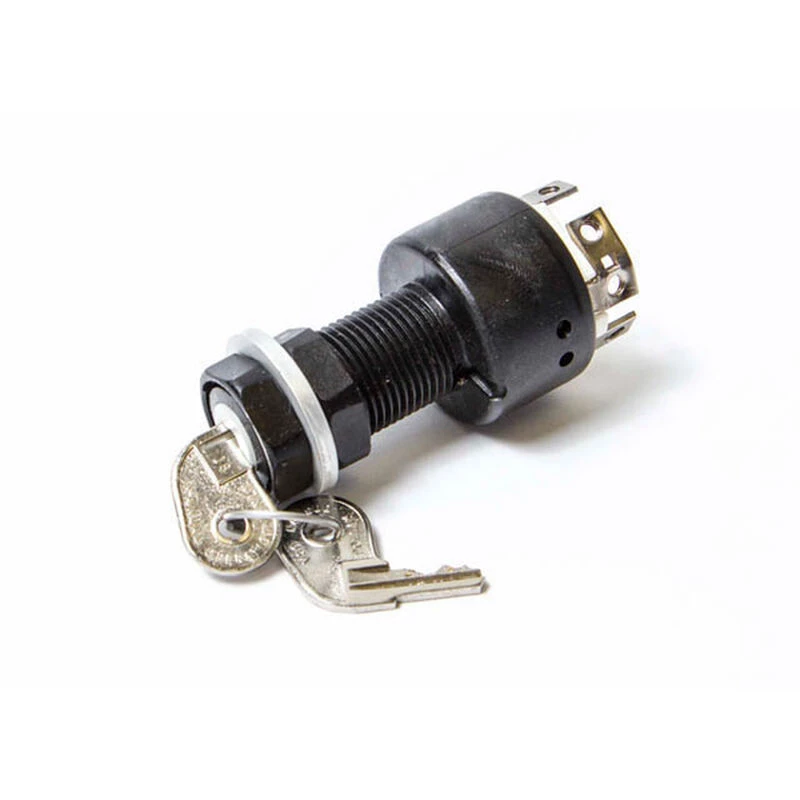

SIERRA 3-Position Magneto Ignition Switch, Off-Run-Start

This magneto ignition switch is made of marine-grade, glass-filled polyester for maximum corrosion protection.

Sierra’s Polyester Ignition Switch is impact- and corrosion-resistant and fits a standard 7/8″dia. hole. This three-position magneto switch provides Off-Run-Start positions. Includes two keys and different key codes for added security.

Key Features

• Maximum corrosion protection eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Three-position magneto switch
• Terminal to power separately controlled choke circuit

Specifications

• Material: Marine-grade glass-filled polyester
• Length: Long, 1 1/8″ maximum panel thickness
• Hole Size: 7/8″
• Terminal Type: 6 screw tab
• Back Up Nut: Brass
• Face Nut: Hex black plastic
• Positions: Off-Run-Start

Rated

• Ignition: 15A @ 12V DC
• Solenoid: 30A @ 12V DC
• Choke: 7A @ 12V DC

The Sierra Engine Parts Selector

In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our Engine Parts Selector, where you can search by engine make, serial number and model or year of manufacture.

Application	OEM Part Number
Johnson/Evinrude Outboard	386545
Seadog	420369-1
