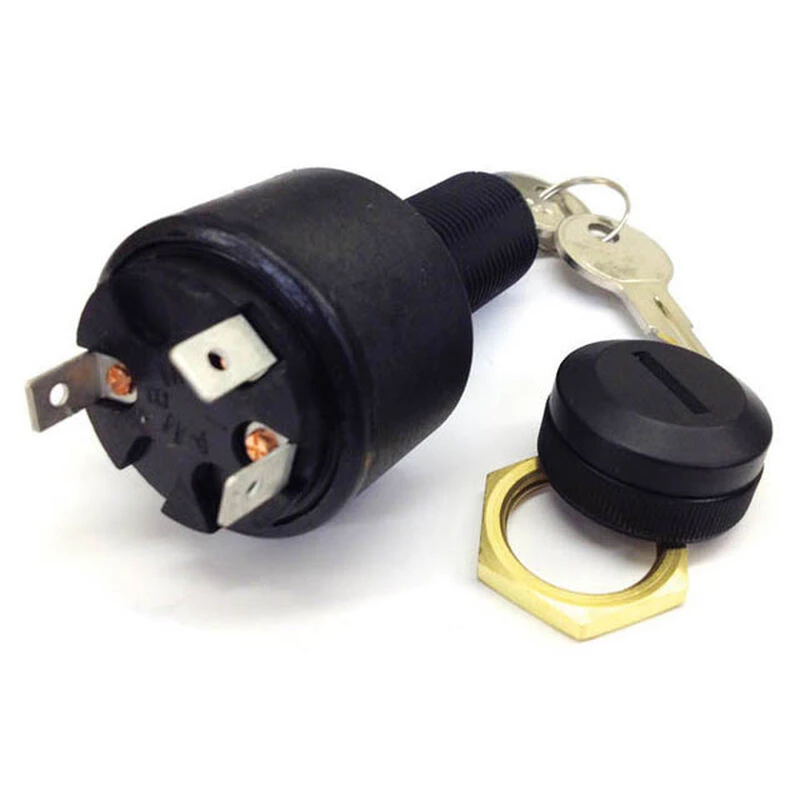

SIERRA 3-Position Ignition Switch Conventional, Off-Run-Start

This 3-position conventional switch is impact- and corrosion-resistant.

Sierra’s 3-Position Ignition Switch installs in a standard 7/8″dia. hole and includes a snap-on rubber cap for additional protection from mist or spray. Nickel-silver blade terminals ensure long-lasting conductivity. This three-position conventional switch provides Off-Run-Start with three blade terminals. Includes two keys and different key codes for added security.

Key Features

• Maximum corrosion protection eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Three-position conventional switch

Specifications

• Material: Marine-grade glass-filled polyester
• Length: Long, 1 1/8″ maximum panel thickness
• Hole Size: 7/8″
• Terminal Type: 3 blade
• Back Up Nut: Brass
• Face Nut: Knurled black plastic with snap-on rubber cap
• Positions: Off-Run-Start

Rated

• Ignition: 15A @ 12V DC
• Solenoid: 30A @ 12V DC
