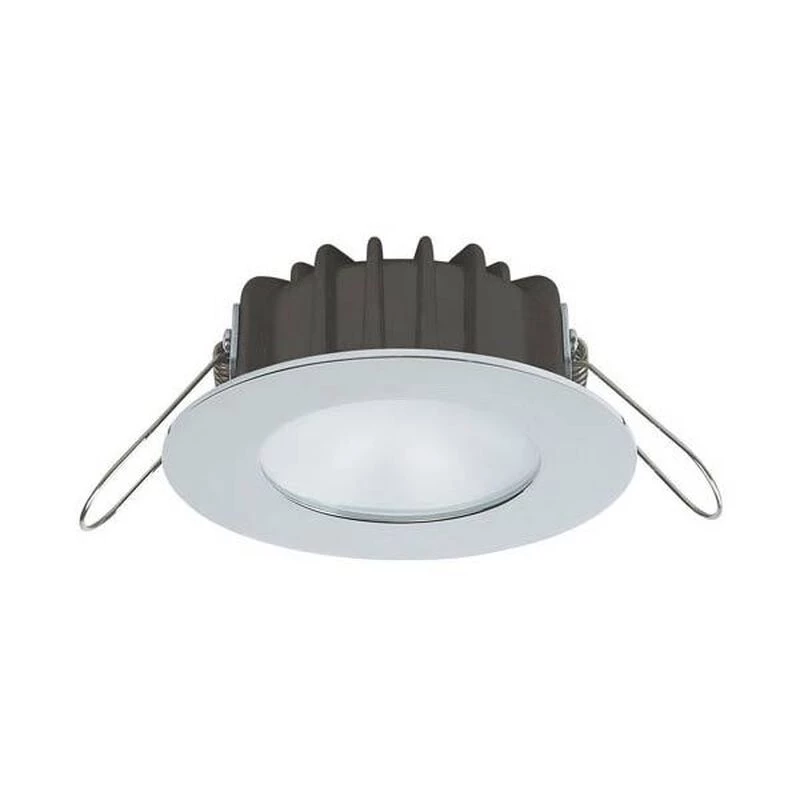

IMTRA CORPORATION Ventura Power LED Lamp Warm White

The Ventura powerLED recessed spot is Imtra’s most popular PowerLED marine lighting spot. Its light output exceeds that of legacy 20 Watt halogen spots while consuming 80% less power. So it is easy to see why so many boat builders have made the switch to Ventura. Proprietary drive electronics and carefully designed optics result in a more blended aperture appearance (vs. halogen) resulting in light which is free of annoying artifacts or distracting hot spots. Imtra’s carefully designed thermal management system results in maximum life with minimal lumens depreciation over its working life (approximately 50,000 hr). And like all of Imtra PowerLED spots & fixtures, the Ventura is 100% dimmable when used with Imtra’s power-saving PWM momentary digital dimmer. Ventura’s ultra-thin bezel profile blends in nicely with hard or soft headliners. Several finishes available along with choice of LED colors, including dimmable bi-color models. The Ventura conveniently & firmly installs with self-adjusting stainless steel springs. Made in the USA and confidently offered with a 5 year warranty.

• 1P/1T NO or 1P/2T NO/NO Momentary push button switch dimmer control interface
• Ultra flat stainless steel bezel
• High lumen output
• Solid-state circuitry
• Minimal power consumption
• Completely sealed LED sub-assembly
• Integrated drive electronics (no external driver)
• PWM dimmer interface
• CCT: 2800K
• Color: Warm White
• Driver: Integrated
• Luminous Flux: 183 Lumens
• CRI: 83
• Lifetime: 50000 hr
• Beam Angle (FWHM): 90 Degree
• Trim Ring Diameter: 81mm
• Cut-out Diameter: 67mm
• Dimming Range: 10 – 100%
• Class III
• Ring Material: Stainless Steel
• Lens Material: Frosted glass
• Recessed Depth: 29mm
