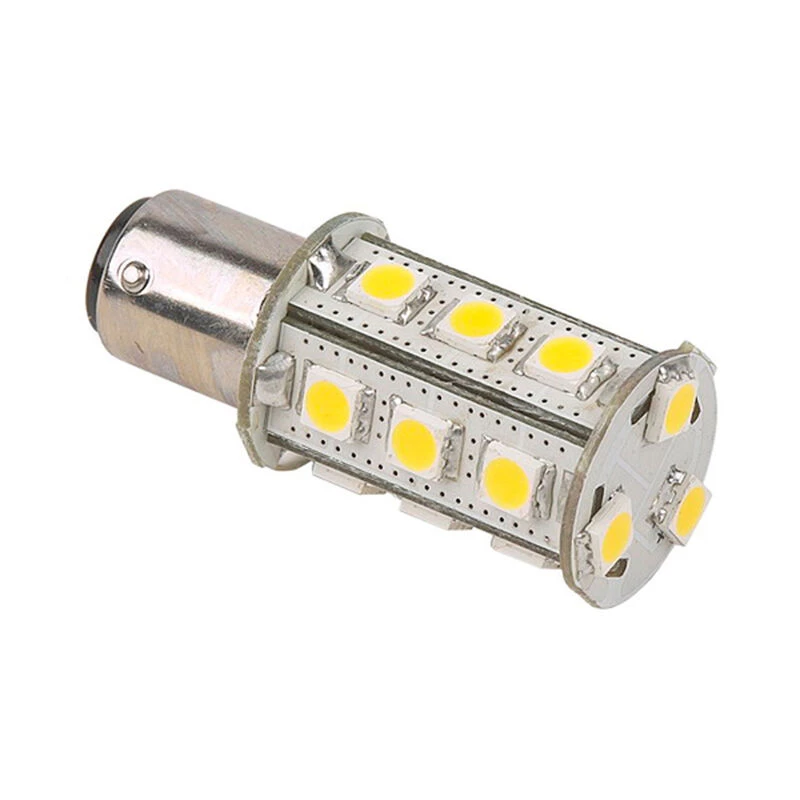

IMTRA CORPORATION Tower Navigation Bayonet LED Bulb Warm White 10 to 30V DC 3 Watts Omni-Directional BAY15d Socket

This warm white version of one of the Tower Navigation Bayonet bulb is a better choice for use behind colored (e.g., red, green, bi-color, tri-color) lenses as its full spectrum illumination more accurately produces the color that is desired for your running lights. This is the highest output LED tower cluster available for marine use. It uses 18 surface mount cool-white (SMD) LEDs arrayed in 6 planes for 360 Degrees visibility. Proprietary PWM constant-current chipset results in high performance across the entire 10 to 30V DC range. This LED bulb product may be used in red, green, bi-color or tri-color navigation light fixtures that use a BAY15d bulb (double contact, offset pins). For anchor or stern white light it is not recommend one of the cool white version of this bulb, See ILTW1157-SMC

Application Note: Fits Aqua Signal Series 40, 41, 42 & 50 as well as Hella 2984 & Perko 200 Fixtures. Replaces Aqua Signal Bulb # 90005, Hella Bulb # 78290 & Perko Bulb # 037512V10W

Features & Benefits:

• High output SMD LEDs
• Meets COLREG 3nm visibility requirements
• Meets anchor light visibility requirements for vessels up to 20m
• Meets color/visibility (bi-color lenses) required for vessels up to 12m
• Constant-current drive topology
• Over-voltage protection
• Thermally efficient design
• Current Draw: 250mA/12 Volts, 125mA/24 Volts
• LED Emitting Color: Warm White
• LED Type/Quantity: 18 x SMD
• Beam Angle (FWHM): 120 Degrees (five directions), 360 Degrees pattern
