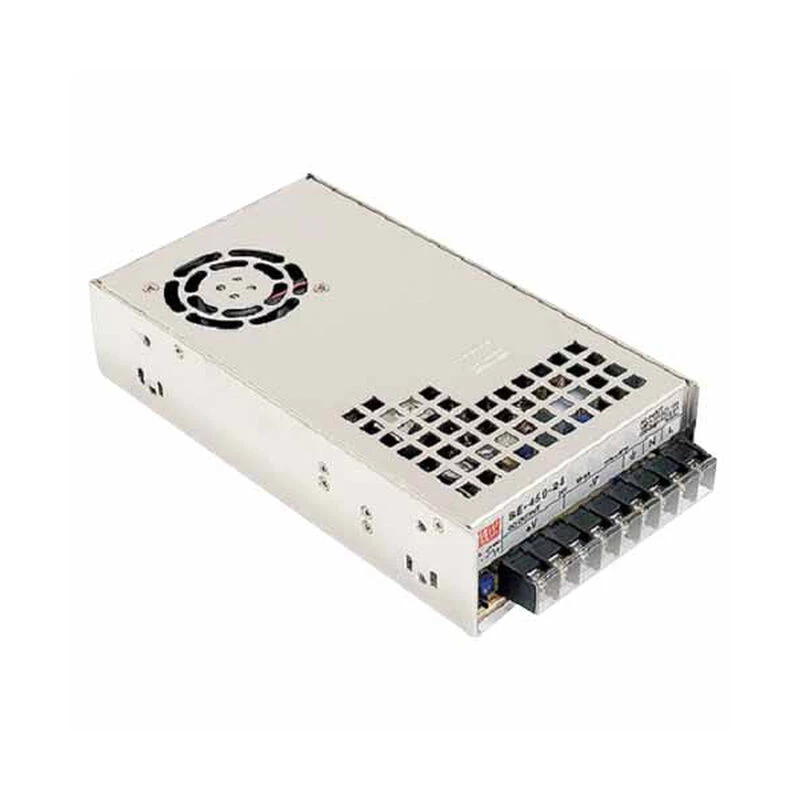

IMTRA CORPORATION LED Converter 90-264V AC to 24V DC 450W

Our highest capacity LED voltage converter, the SE-450 model features a universal selectable AC input (90 to 264V AC) & adjustable DC output (21.6 to 28.5V DC) providing clean voltage-regulated DC power; ideal for sensitive electronics & LED lighting.

Features & Benefits:

• Selectable AC input
• Adjustable DC output
• Short circuit & over-current protection with auto-reset
• Over temperature protection with auto-reset
• Active surge current limiting
• Forced air cooling – DC ball bearing fan
• Compliant to worldwide safety regulations
• Rated Power Capacity: 450 Watts
• Efficiency: 86%
• Max. Ambient Temp.: 122 Deg F (50 Deg C)
• Max. Housing Temp.: 176 Deg F (80 Deg C)
• Dimensions: 8.86″ x 4.88″ x 1.97″
• Electrical Protections: Short Circuit, Over Current, Over Voltage, Thermal
• EMC (RFI): FCC Class B/EN 55015/61000, 61547, ENV50204/55024
• Classifications: CE, UL60950, ROHS
• Mounting Method: Chassis
• Install Location: Within 30′ of last light fixture
• Ingress Protection: IP20
