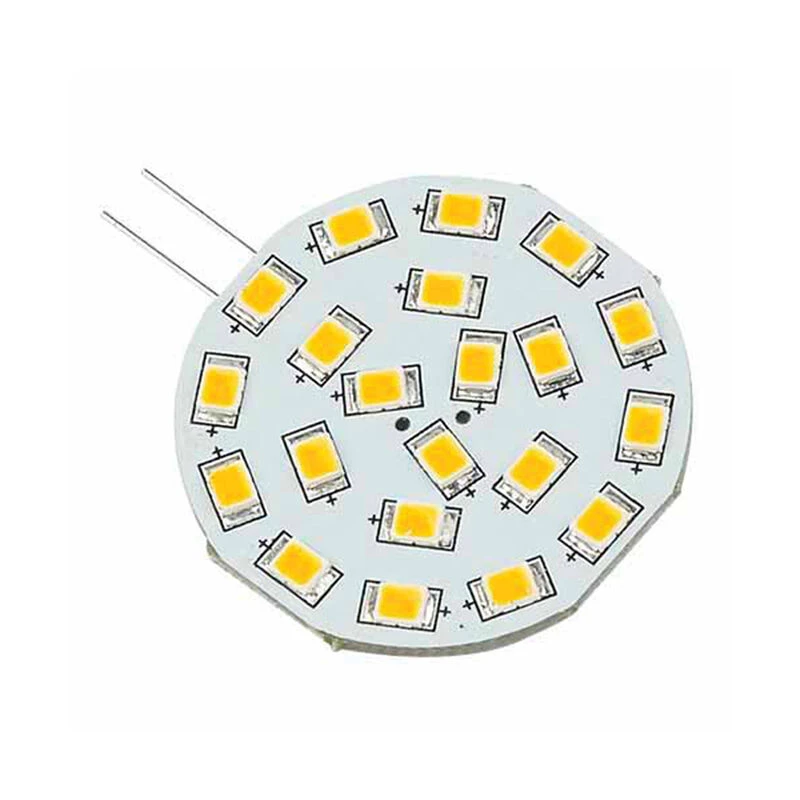

IMTRA CORPORATION Corona LED Replacement Bulb Warm White 10 to 30V DC 3 Watts G4 Socket Side Pin

At 270 lumens, this is one of the brightest warm white G4 LED bulb. Proprietary PWM constant-current drive & 21 x high output thermally-efficient SMD LEDs combine to give record setting output in a G4 form factor. The extra wide diameter printed circuit board distributes the LEDs over a greater area, making this the ideal choice for larger spots & fixtures.

Features & Benefits:

21 x high output SMD LEDs

Large diameter board for bigger fixture designs

Constant-current drive topology

Over-voltage protection

No radiated heat

Thermally efficient design

Also compatible with 12V AC (supplied from transformers)

Automatic thermal rollback protection

Transient voltage suppression (to 60 Volts)

Beam Angle: 120 Degrees

LED Type/Quantity: 21 x SMD

Fits Socket: G4 Socket (Side Pin)

Halogen Equivalency: 20 Watts

Electrical Protections: Thermal, Reverse Polarity, Transient Suppression (up to 60 Volts)

Dimensions: 1.38″ Diameter x 0.37″ Thick

Length of Pin: 0.47″

2 years warranty
