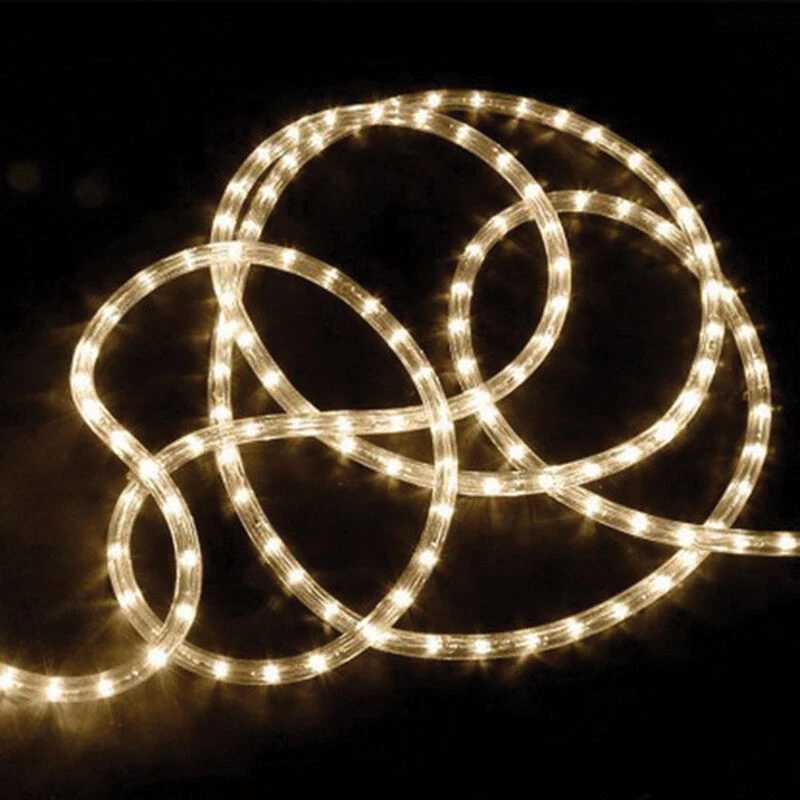

IMTRA CORPORATION 3/8″ LED Rope Lighting

The following required parts must be purchased separately to complete your rope light installation:

• ILMDL-CONKIT-L6, 6′ power cord and connector with Rectifier
• ILMDL-END, end cap

Special note for residential/commercial building use:

Our 120 Volts LED rope light with 120 Volts connection kit (ILMDL-CONKIT-L6) may be plugged into any standard commercial or residential wall outlet without the need for an AC adapter or transformer. If hard-wiring, simply cut off the existing plug from the power cord & prepare (strip) the cable ends. Please note that there is no ground wire.

Check our knowledge base for information on using dimmers with LED rope light. We also offer low voltage LED rope lighting.

• Warm White
• Power Consumption: 0.7 Watt
• Amp Draw: 0.006 Amp/ft
• Voltage: 120 Volts
• Bulb Spacing: 1″
• Bulb Orientation: Vertical
• Pricing Units: Per Foot
• Recommended Air Temperature Range: -4 to 122 Deg F
• Cutability: Every 36″ (3′)
• Maximum Run Length: 328′
• Safety Standards Compliance: CE-EMC, UL 2388
• Minimum Length: 3′
