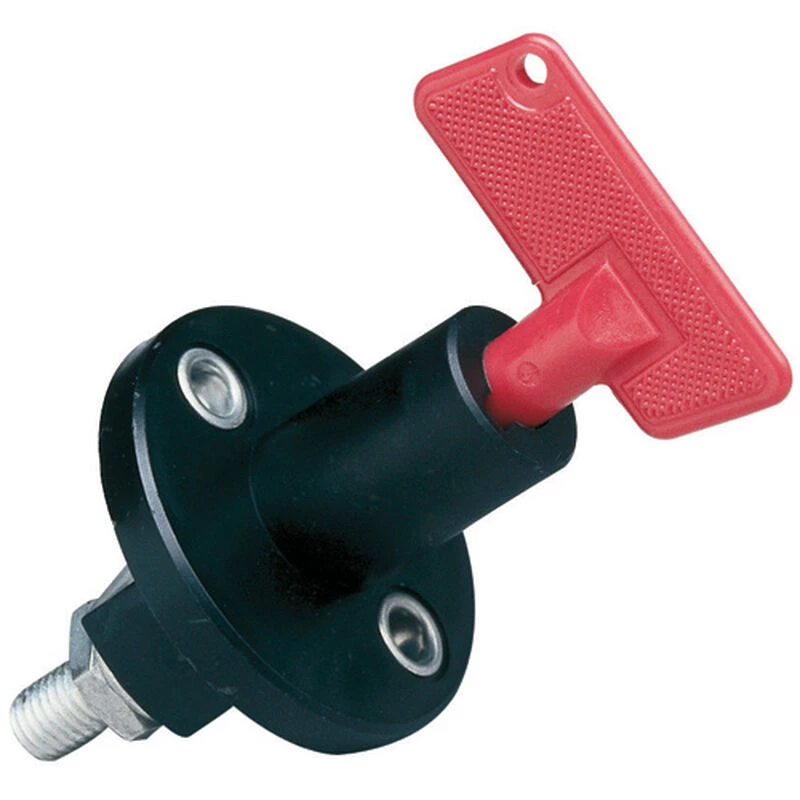

HELLA MARINE 100 Amp Battery Master Switch

A keyed battery master switch that is great as a windlass or other high current circuit ON/OFF switch

This small keyed switch is ideal for controlling high amperage circuits such as windlasses, davits, and thrusters to provide security or as a service lockout. This 100 amp switch can be surface mounted or mounted on the back of the panel through a 7/8″ hole to offer a cleaner look.

Key Features

• Small footprint; easily installed in space limited applications
• Key is removable in OFF position to offer security and provide a service lockout
• Easily connected to either positive or negative conductors
• Tin plated contacts
• Fits in panels up to 1″ thick
• Splash proof (IPX4 rated)
• Replacement key available (model 192049)
• Five-year warranty

Specifications

• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 24V
• Continuous Rating: 100A
• Intermittent Rating (duration): N/A
• Cranking Rating (10Sec): 1000A
• Battery Inputs: 1
• Cable Size to meet ratings: N/A
• Mounting Holes: # 10 Screws
• Terminal Stud size: 3/8″
• Dimensions: 2 1/4″Diameter x 1 5/8″ Deep (2 3/8″ from face to edge of key)
