COLE HERSEE Rocker Switches

Popular replacements for rocker switches in waterproof electrical panels to ensure waterproof integrity.

You’ll find these Rocker Switches from Cole Hersee are available in several different configurations for panel mounting and are suitable for all kinds of general-purpose applications. Weather-resistant with contact areas sealed to IP66 waterproof rating (high pressure wash-resistant). Available in illuminated and non-illuminated models, they feature non-glare black matte plastic housings, bezels and actuators, brass screw or blade terminals and gasket seals. Models with a pilot light indicate when the circuit is on. Easy snap-in mounting in panels from 0.093″ (2.36mm) to 0.187″ (4.75mm) thick.

Key Features

• Non-corrosive plastic construction
• Silver contacts for superior switching performance
• Gasket sealed against dust and prolonged spray to IP66 standards
• Bulb illuminates in the ON position

Model	Type	Switch Function	Illuminated	Lens Color	Lens Shape	Terminals
147897	DPDT	ON-OFF-ON	No	n/a	n/a	6 blade
147913	DPDT	Momentary ON-OFF-Momentary ON	No	n/a	n/a	6 blade
147921	SPST	ON-OFF	Yes	Red	Round	3 blade
147939	SPST	ON-OFF	Yes	Red, Amber, Green, Clear	Rectangle	3 blade

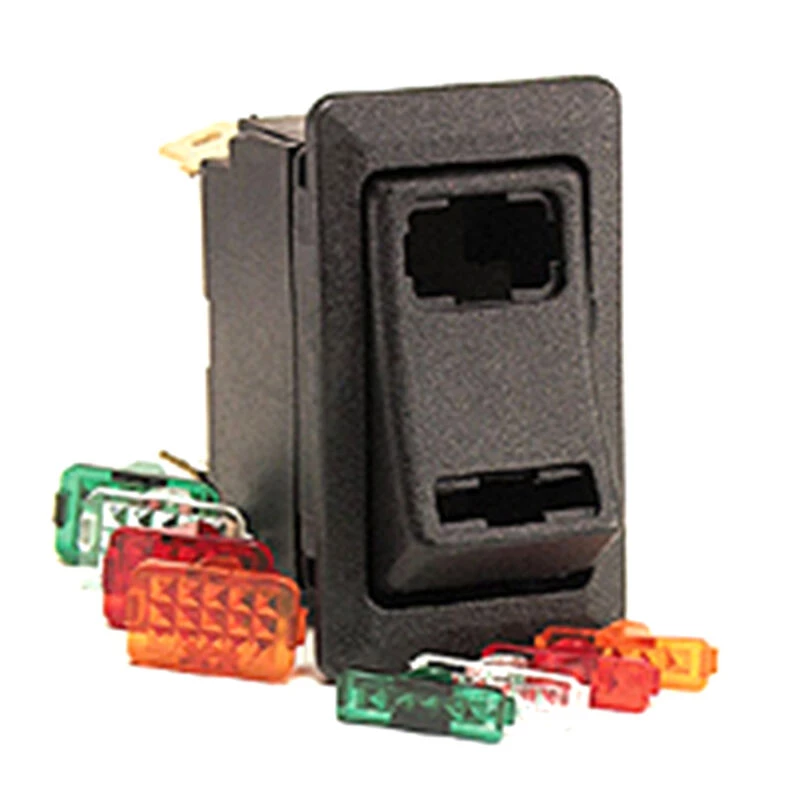

147954	SPDT	ON-OFF-ON	Yes	Red, Amber, Green, Clear	Rectangle (2)	4 blade
147962	SPST	ON-OFF	Yes	Red, Amber, Green, Clear	Rectangle (2)	4 blade

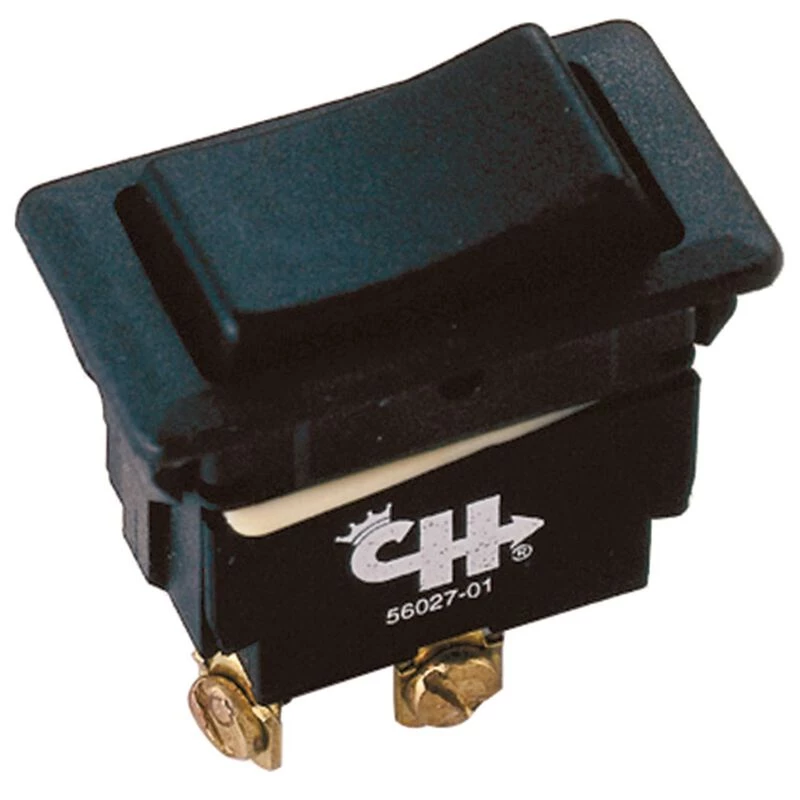

191769	SPST	ON-OFF	No	n/a	n/a	2 blade

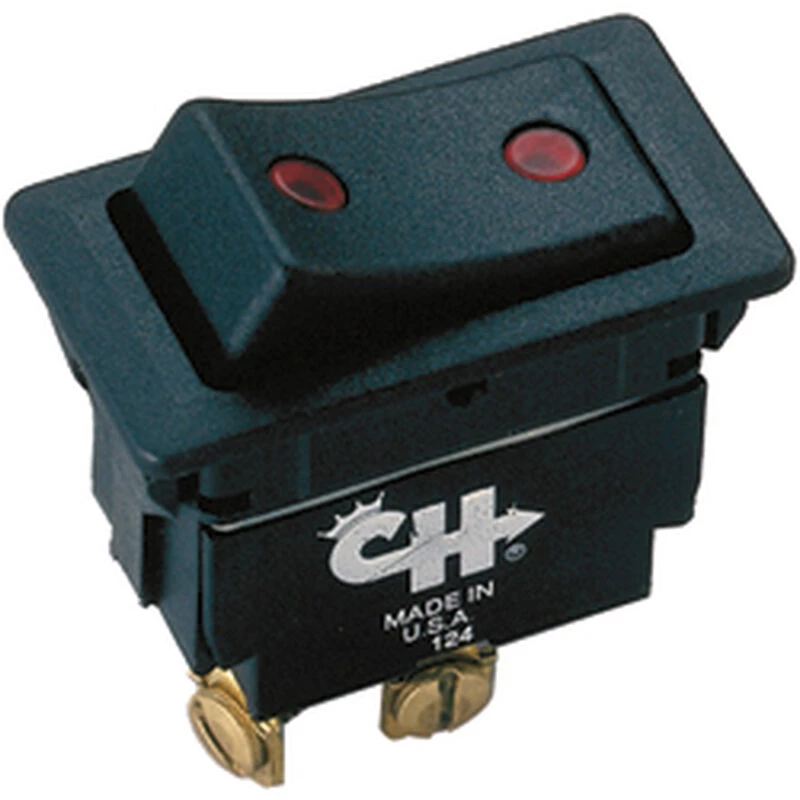

192148	SPST	ON-OFF	No	n/a	n/a	2 screw
192155	SPST	ON-OFF	Yes	Red	Round	3 screw
192163	SPDT	ON-OFF-ON	No	n/a	n/a	3 blade
192189	SPST	Momentary ON-OFF	No	n/a	n/a	2 blade
192197	SPDT	Momentary ON-OFF-Momentary ON	No	n/a	n/a	3 blade
192205	SPDT	ON-OFF	Yes	Red	Round (2)	4 blade
