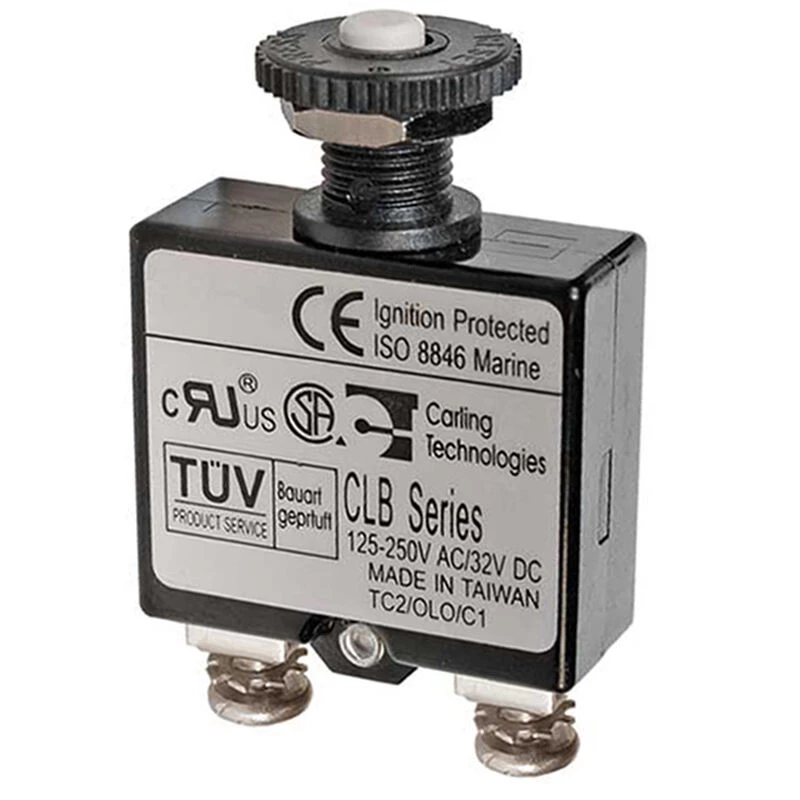

BLUE SEA SYSTEMS Push-Button Reset-Only Thermal Circuit Breakers – #8 Screw Terminals

Provides economical circuit protection for 3 to 40 Amp loads when switching is provided elsewhere or not required.

Compact, ignition protected design allows high density DC circuit protection in tight quarters. Push-to-reset, “trip free” design cannot be held “ON” during fault conditions. Optional waterproof boot provides additional circuit breaker protection in wet environments.

• Branch circuit breakers – also used for 24-hour circuit protection
• Push-to-reset operation
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Ignition protected – Safe for installation aboard gasoline powered boats
• Optional push button waterproof boot protects circuit breaker in wet environments

Specifications

• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Voltage Compatibility: DC
• Maximum Voltage: 32V DC
• Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
• Safety Features: “Trip Free” design cannot be held “ON” during fault
• Housing Material: Plastic
• Housing Dimensions: 1-3/8″L x 5/8″W x 2-3/8″D
• Terminal Type: #8 screw terminals
• Mounting Hardware: Mounts in 3/8″ hole
• Weight: 0.06lb (0.03 kg)
• Approvals: UL 1077 -UL cUL (USA and Canada), TUV certified, UL 1500 and ISO 8846, CE Marked
• Warranty: LIfetime
