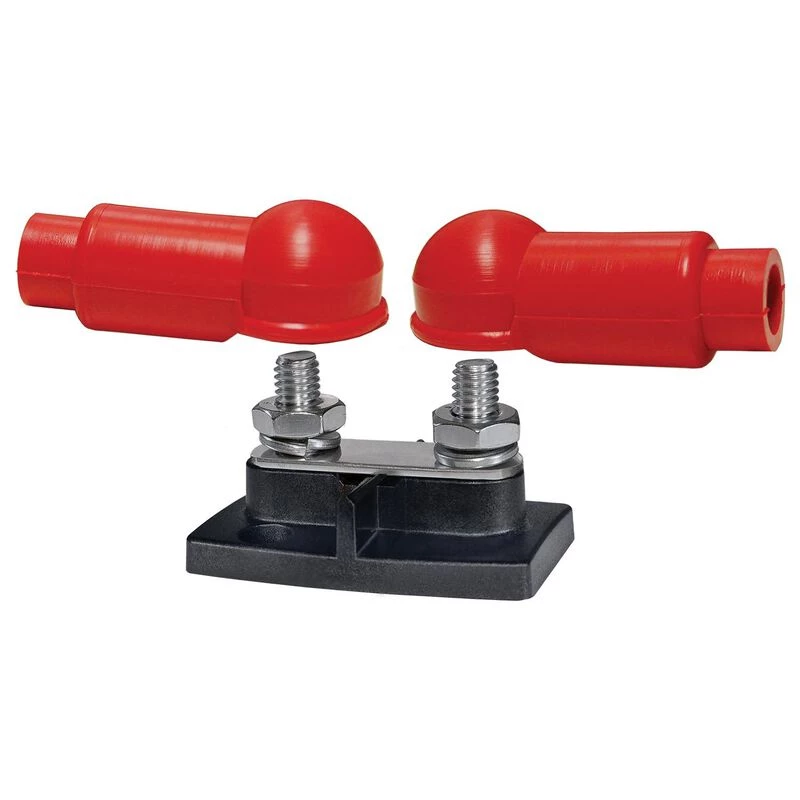

BLUE SEA SYSTEMS PowerBar Dual Bus Bar 200A, w/Insulator Covers

Compact heavy duty bus bar for high amperage applications.

If your installation is tight on space but requires a high amperage bus bar, look no further than the PowerBar from Blue Sea Systems. These two-stud buses can handle up to 200A. Designed for heavier cables, these bus bars are ideal for windlass, davits, and other high current circuits. 3/8″ studs provide a solid anchor and will accept the torque required to create the best possible connection. Two 1/4″ mounting holes secure the base and make attaching larger cables easy.

 Key Features

• Rated for 200A; for use as a main DC negative or positive on larger boats
• 3/8″ stainless steel terminal studs support larger cables and handle the torque for the best contact
• Lexan® polycarbonate base
• 1/4″ mounting holes that secure bus bar and support larger cabling
• Available insulating cover protects terminal studs from accidental contact and cross current shorts satisfies USCG and ABYC requirements for insulation.
• Lifetime warranty

Specifications

• Maximum Voltage: 48V
• Continuous Rating: 200A
• of terminal studs: 2
• Terminal Stud Size: 3/8″
• Terminal Screw Size: N/A
• Mounting Fasteners: #10 screws
• Base material: Reinforced Lexan® Polycarbonate
• Material: Tin-plated copper CDA 110/UNS 1000,
• Dimensions: 2 3/4″L x 1 4/8″ W x 1 5/8″ H

Dimensional Drawing
