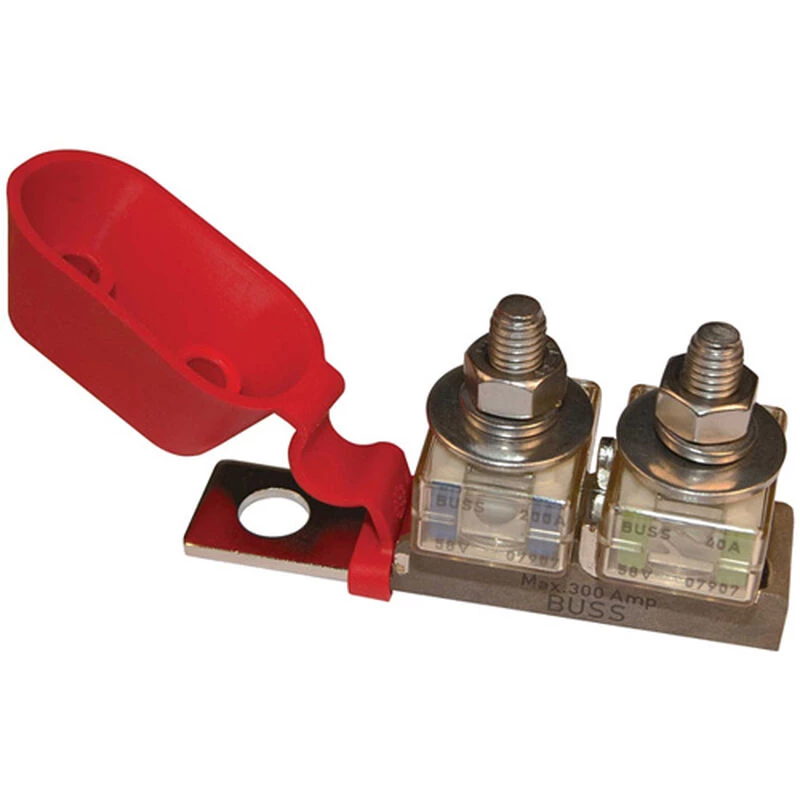

BLUE SEA SYSTEMS MRBF 2 Terminal Stud Fuse Block

Add circuit protection at the battery without having to cut a wire

Terminal fuse blocks provide circuit protection by attaching a fuse block directly to the battery terminal. Simply secure a single or double fuse block to the battery terminal, select the appropriate fuse, and attach conductors. Ideal for circuit protection when space is limited. Fuses are available from 30A to 300A to meet the circuit requirements. An integral cover fits over the terminal studs to prevent accidental terminal contact.

Key Features

• New isolated stud design uses standard 5/16″ hardware and permits stacking of terminals
• Compact, high-amp fuse Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight space constraints
• Weatherproof suitable for small open-cockpit boats and other harsh environments
• Ignition protected for installation in engine rooms of gasoline powered boats
• Insulating cap prevents accidental shorts
• Use 5/16″ or 3/8″ ring terminal

Specifications

• Amperage: 300A
• Voltage: 58V
• Terminal Stud Size: 5/16″
• Studs: 2
