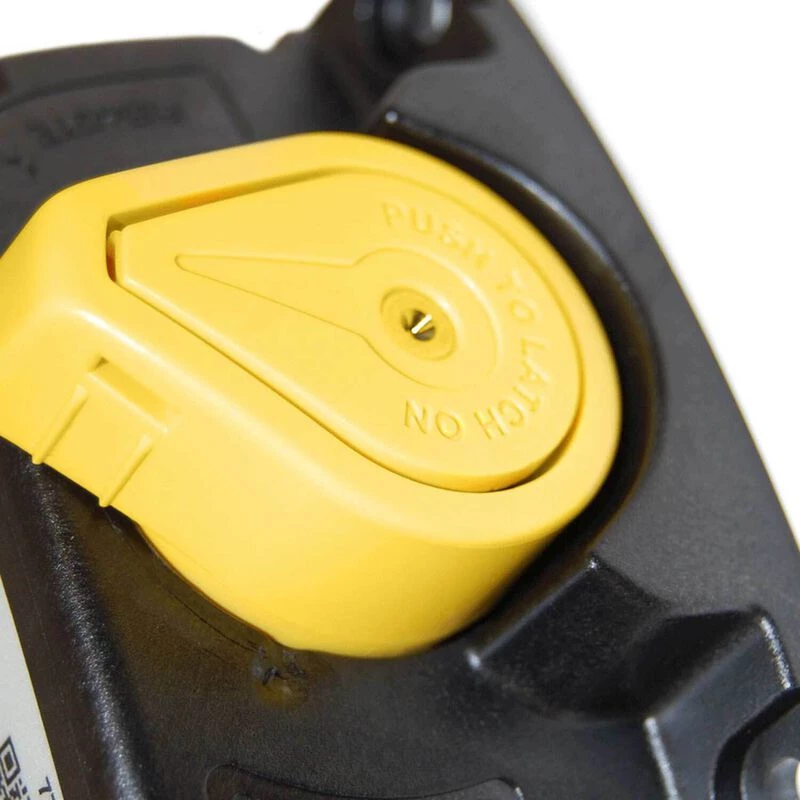

BLUE SEA SYSTEMS ML-RBS Remote Battery Switch
A Remote Battery Switch (RBS) is a 500A relay and remote control switch connected by small gauge single wire. High amperage switching is achieved with the relay mounted next to the batteries and controlled either manually by a switch on the remote battery switch or by the remote switch mounted in an accessible location.
Signal Voltage: 12V momentary, Contact voltage:0-64V, Control Voltage:9-16V, Continuous Rating: 500A, Intermittent Rating: 700A, Cranking Rating (30 sec): 1450A DC ,terminal stud size: 3/8″-16 (M10), Max Term Stud Torque: 140in-lb, Cable size (to meet current ratings): 4/0 AWG
Features:
- Deutsch DTM connector at end of cable
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state – requires optional LED (Sold Separately) or Remote Control Contura Switch with integrated LED (included in retail package)
- One-piece stainless flange nuts ensure safe and secure connections
| Amperage | 500 Amps Continuous Rating , 700 Amps Intermittent Rating , 1450A DC Cranking Rating 30 sec |
|---|---|
| Mounting Hardware | Four #10 Fasteners |
| Type | Battery Switches |
| Warranty | Lifetime |
