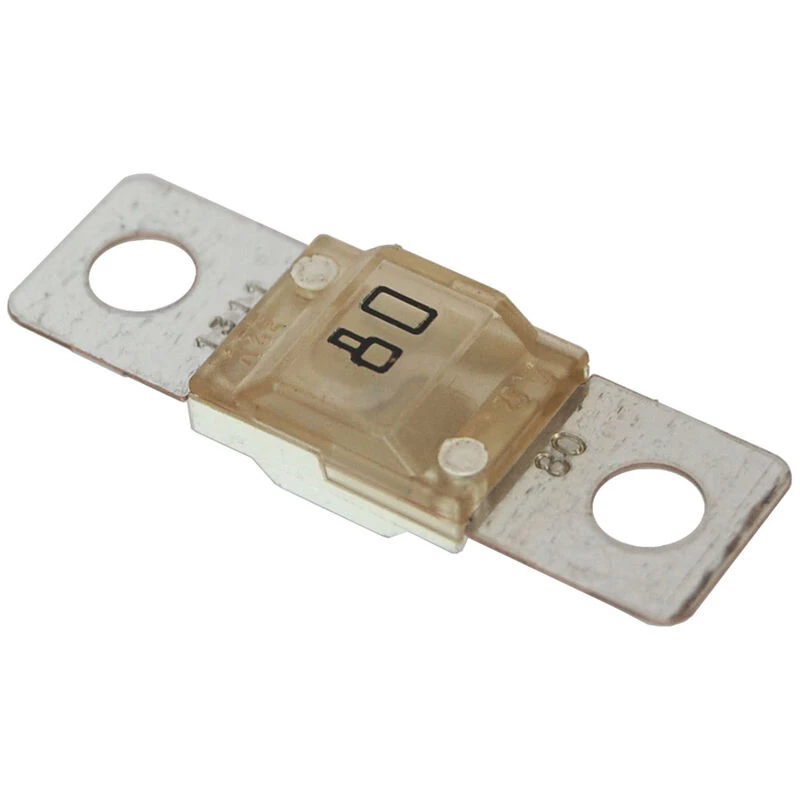

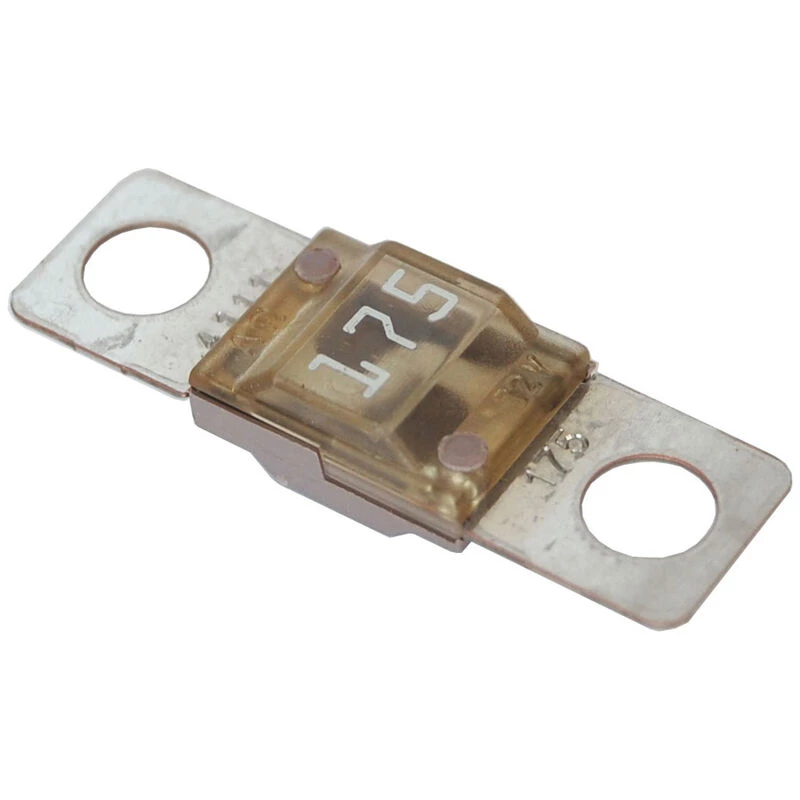

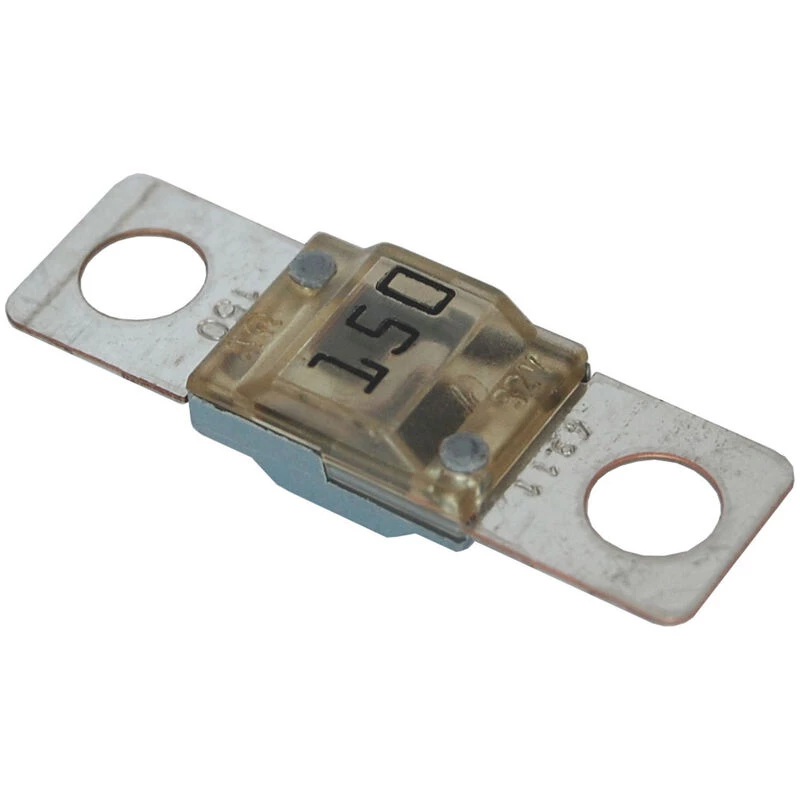

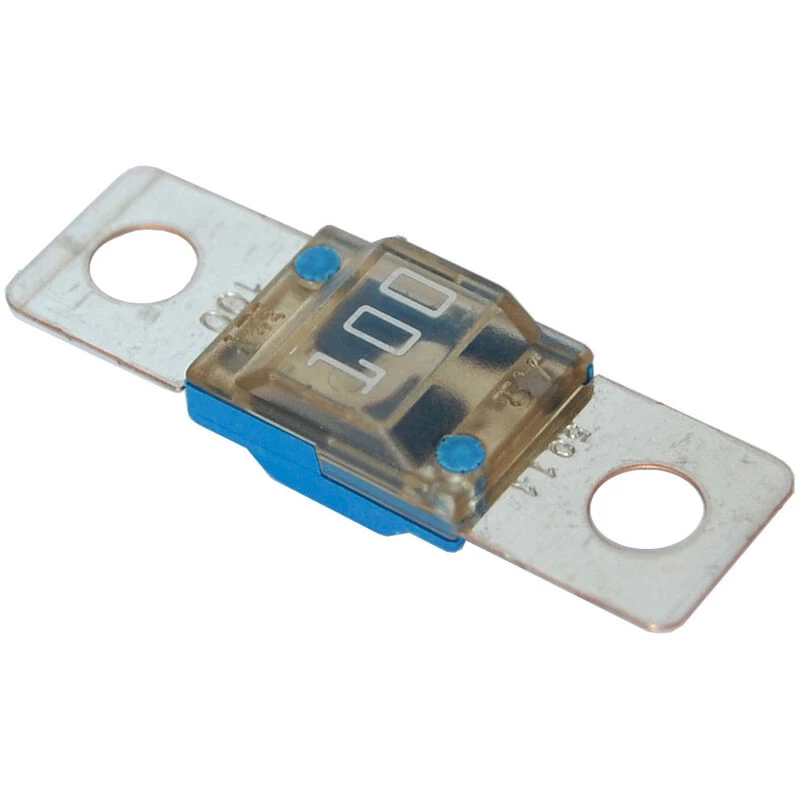

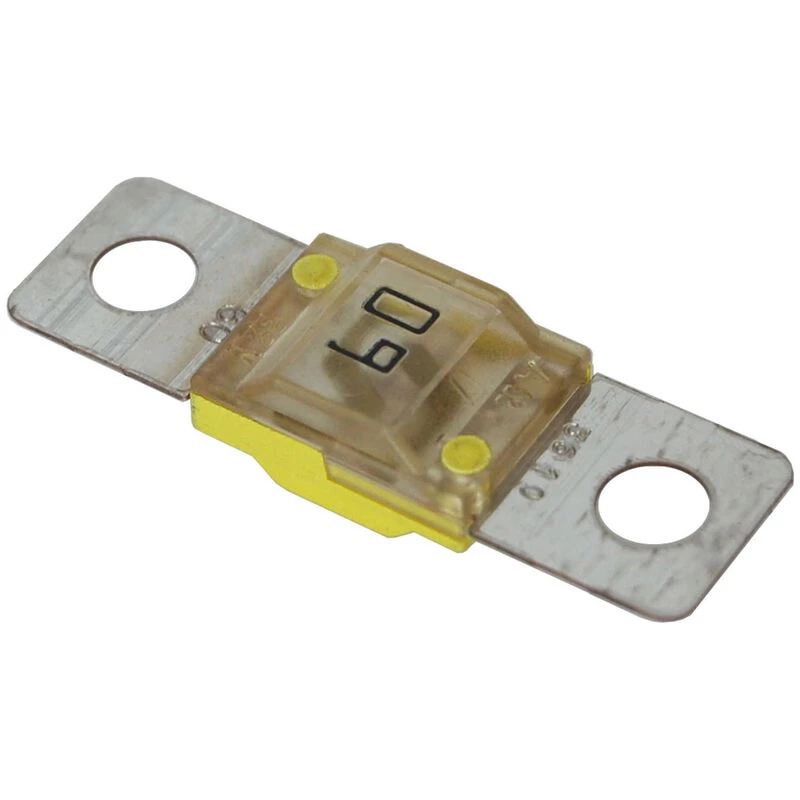

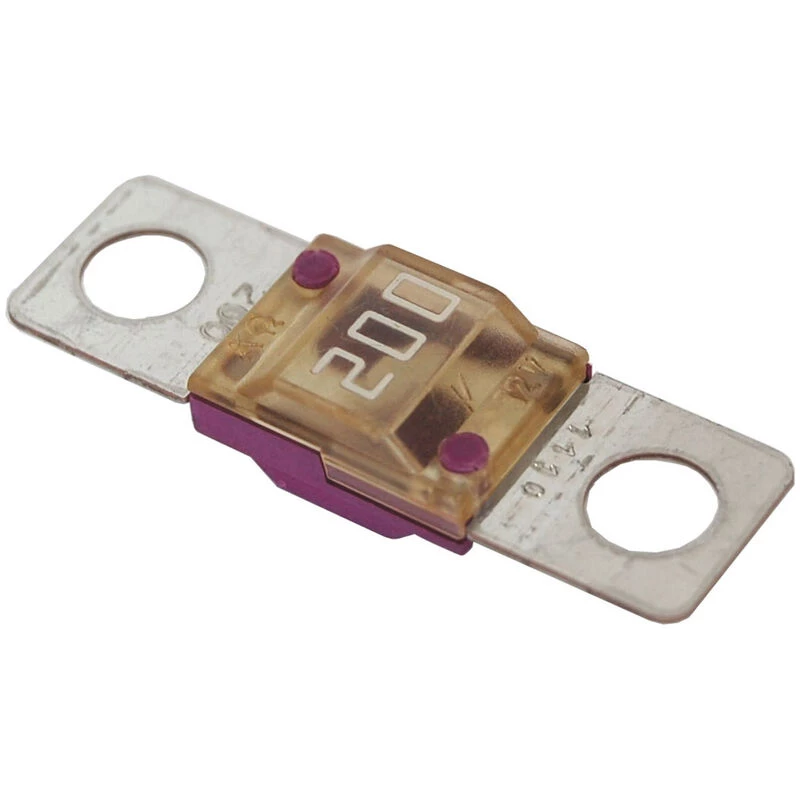

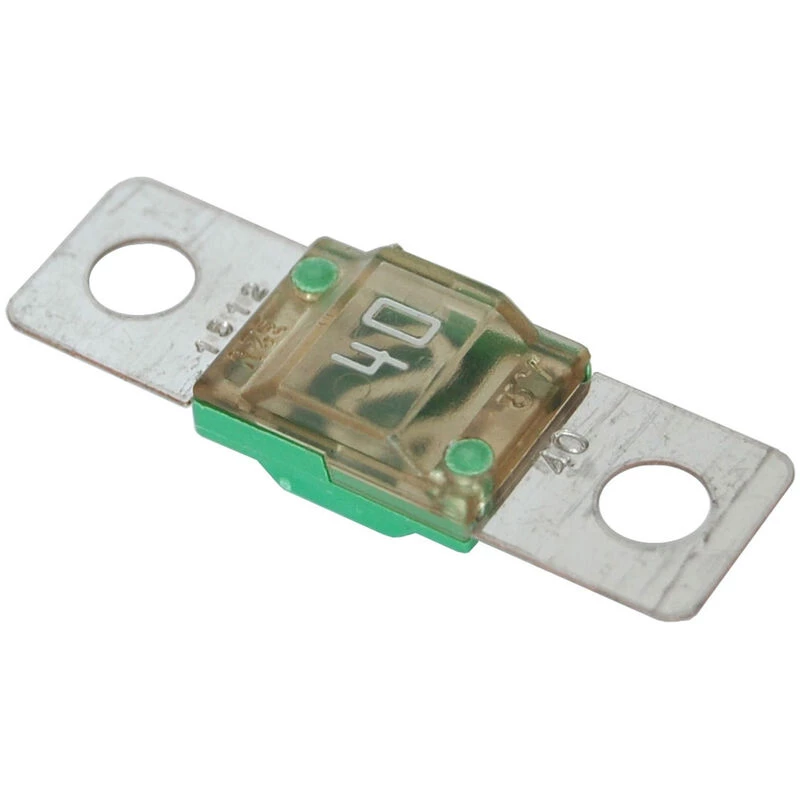

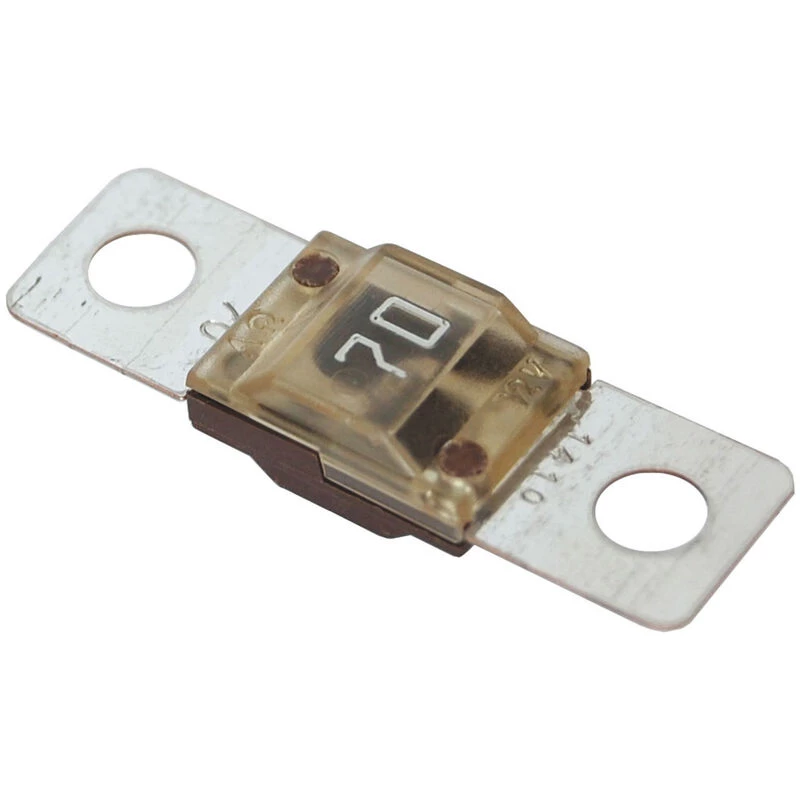

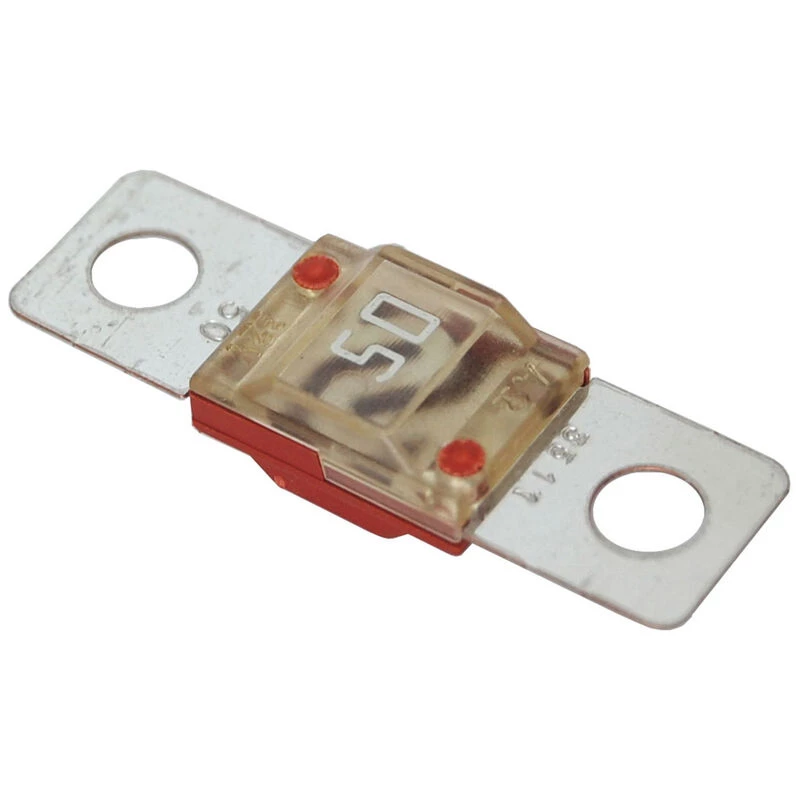

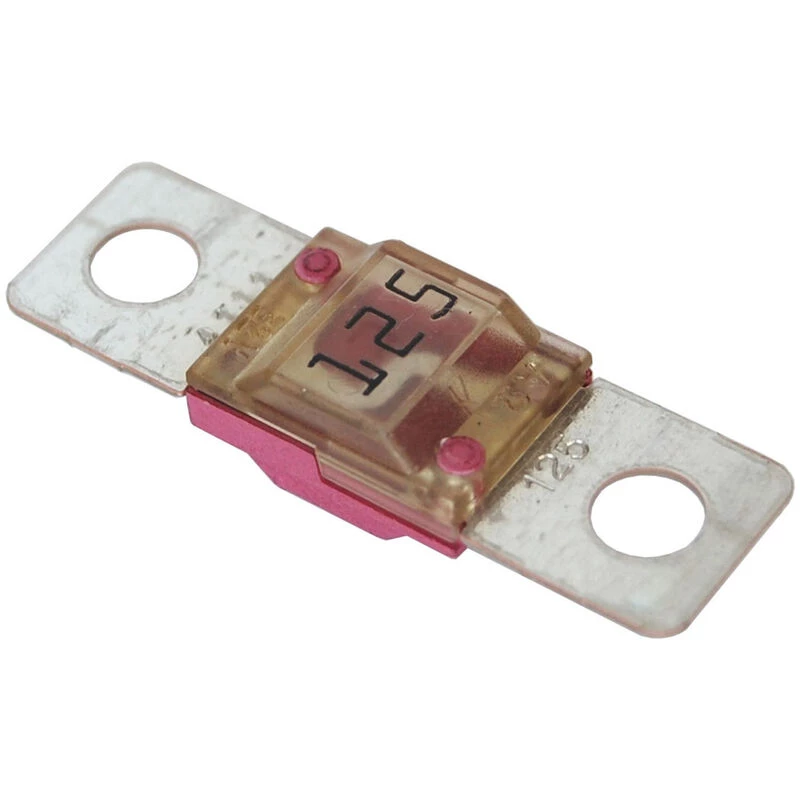

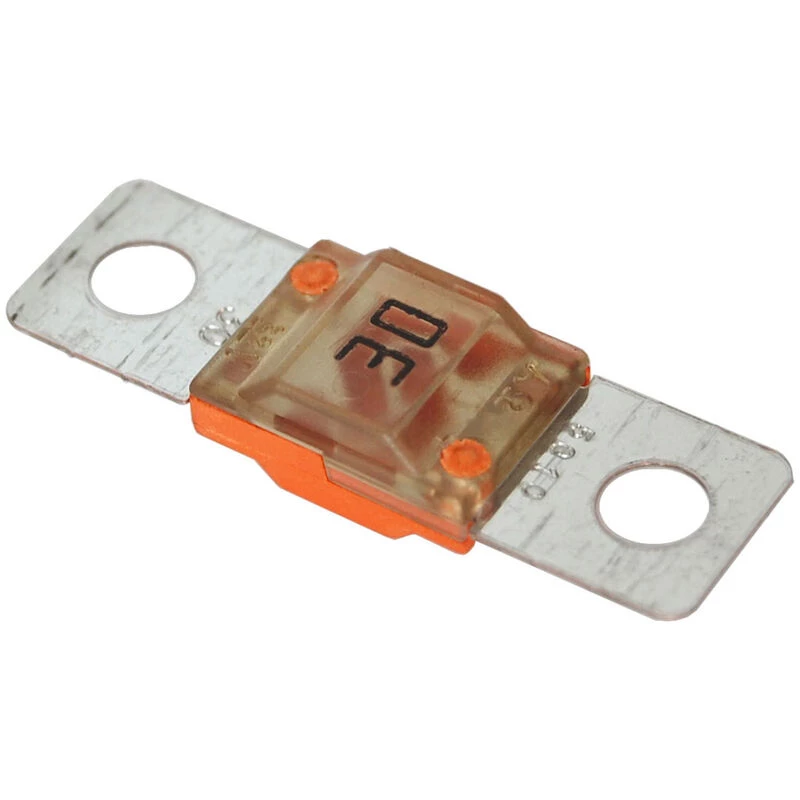

BLUE SEA SYSTEMS MIDI Fuses

Compact fuse for main or branch 30 to 200 Amp circuit protection.

• Tin-plated copper for corrosion resistance
• Clear cover offers visible indication of blown fuses
• Color-coded for easy amperage identification
• Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products
• Sold in packages of two

Specifications

• Maximum Voltage: 32V DC
• Interrupt Capacity, The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage: 5000A @ 16V DC, 2000A @ 32V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 125° C
• Blade Material: Tin-Plated Copper CDA 110/UNS11000
• Maximum Torque: 40 in-lb (4.52 Nm)
• Weight: 0.05lb (0.02 kg)

Dimensional Drawing
