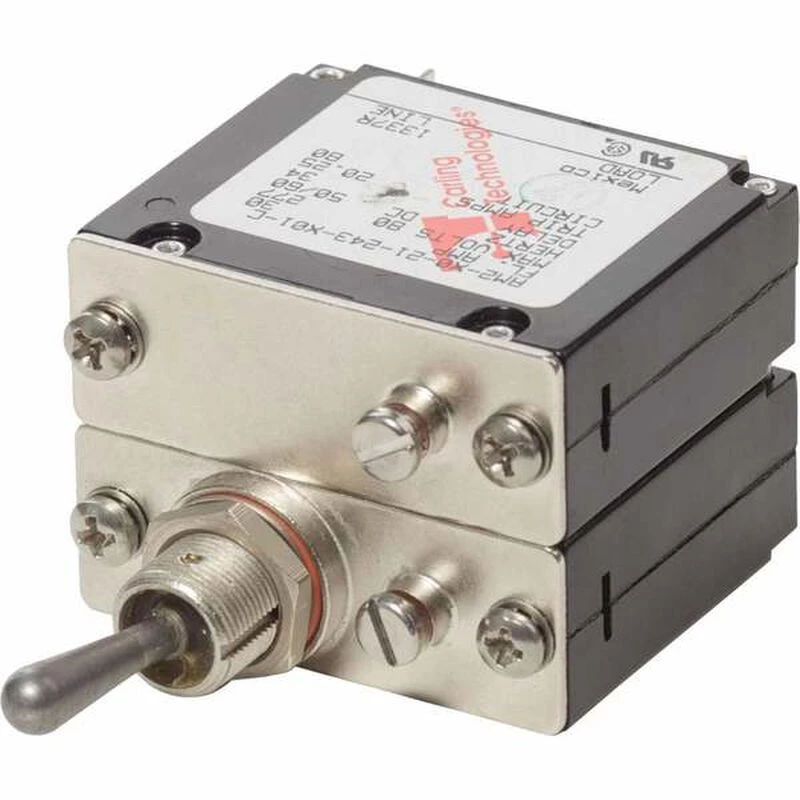

BLUE SEA SYSTEMS COTS Military Grade A-Series Circuit Breakers

• The industry standard circuit breaker for Blue Sea Systems electrical panels
• Double pole typically used for AC Main circuit protection
• “Trip Free” design cannot ben held “ON” during fault current condition
• Meets American Boat and Yacht Council (ABYC) standards
• UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada
• May be suitable for use when military specifications are required under CFR 46.

• Maximum Voltage: 277V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Interrupt Capacity, The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage: 1500A AC, 7500A DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Boss: 1/2-32 Hex Nut SS
• Mounting Nut Torque: 30in-lb (3.39 Nm)
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 7 in-lb (0.79 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 6000 Electrical, 4000 Mechanical
• Terminal Screw: #10-32 SS
• Weight: 0.23lb (0.1 kg)

Dimensional Drawing

Cutout Template
