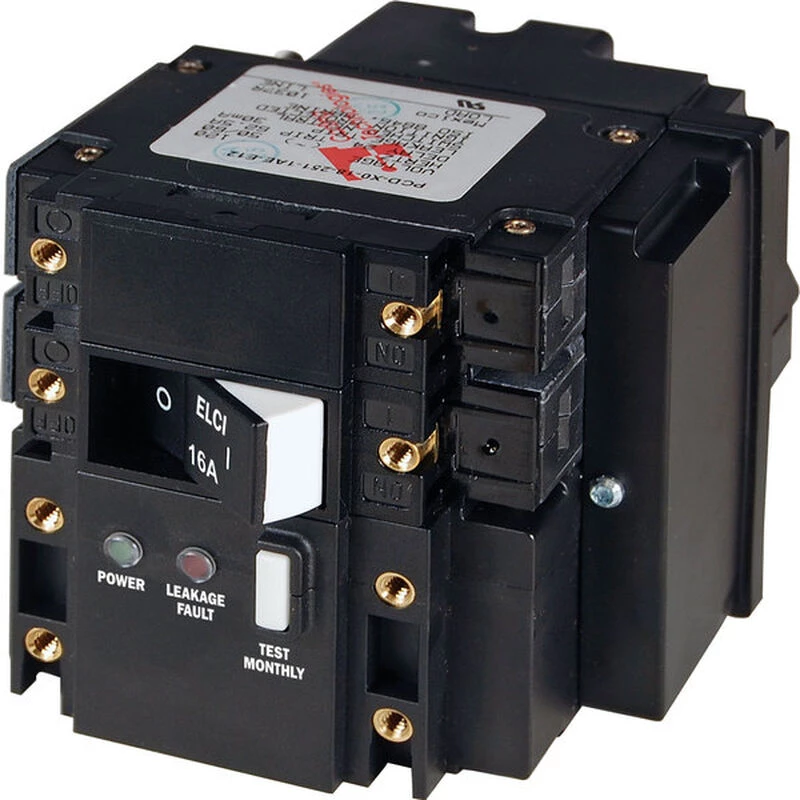

BLUE SEA SYSTEMS C-Series ELCI Main Circuit Breakers

Protect passengers and swimmers by adding an ELCI breaker traditional metal panel

Equipment Leakage Circuit Interrupter (ELCI) breakers protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock. A ground failure in an appliance (ground fault) or a loose grounding wire (faulty ground) can create a dangerous and possibly life threatening situation. Current if leaked into the water can paralyze swimmers causing them to drown. The risk is significantly higher in fresh or brackish water.

Blue Sea Systems ELCI main breakers will trip if there is an imbalance in current between hot and neutral conductors caused by a faulty ground or ground fault. The C-Series ELCI breakers allow you to put this protection into a Blue Sea Systems 360 breaker panel of SMS enclosure panel. Several amperage ratings are available to match the demands of the boats electrical system. Installation of an ELCI breaker, when installed following their guidelines, meets ABYC E-11 requirements.

Key Features

• Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
• Compatible Blue Sea Systems 360 panels and SMS enclosures with flat rocker compatible panels
• Breaker has Trip-free feature and cannot be held in ON position when fault is detected
• Meets ABYC E-11 regulation (when installed within guidelines)
• Lifetime warranty

Specifications	3091	3092	3093
AC DC	AC	AC	AC
Amperage	16A	32A	50A
Actuator Style	Flat Rocker	Flat Rocker	Flat Rocker
Poles	2	2	2
Ignition Protected	Yes	Yes	Yes
Maximum Voltage	230V AC per pole	230V AC per pole	120V AC per pole, 240V AC per pole
Circuit Breaker Type	Magnetic Hydraulic – trip free	Magnetic Hydraulic – trip free	Magnetic Hydraulic – trip free
Interrupt Capacity	5000A	5000A	5000A
