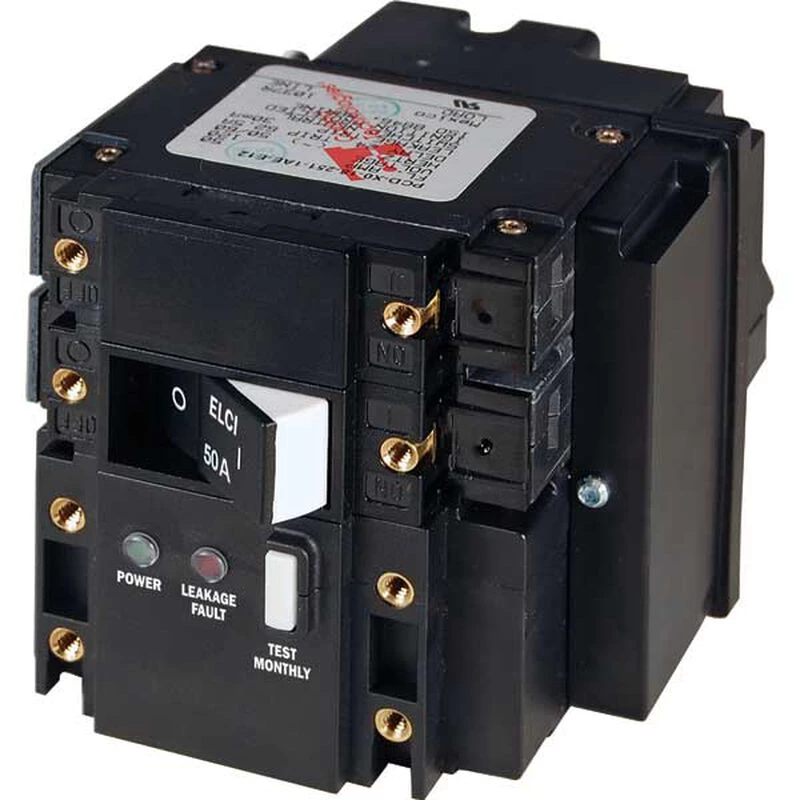

BLUE SEA SYSTEMS C-Series ELCI Main Circuit Breaker, Double Pole, 120V AC, 50A

Protect passengers and swimmers by adding an ELCI breaker to your 360 panel

Equipment Leakage Circuit Interrupter (ELCI) breakers protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock caused by ground fault or faulty ground. Blue Sea Systems offers the C-Series 50A ELCI main breaker (240V AC double pole) that will trip when either situation is detected. This breaker will fit into 360 panels or SMS enclosures that compatible with flat rocker style breakers. Installation of an ELCI breaker, when installed following their guidelines, meets ABYC E-

Key Features

• Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
• Compatible with 360 panels and SMS enclosures
• Breaker has Trip-free feature and cannot be held in ON position when fault is detected
• Meets ABYC E-11 regulation
• Lifetime warranty

Specifications

• Amperage: 50A
• Actuator Style: Flat Rocker
• Maximum Voltage: 120V AC per pole, 240V per pole
• Circuit Breaker Type: Magnetic Hydraulic- trip free
• Interrupt Capacity: 5000A

Instructions

Dimensional Drawing
