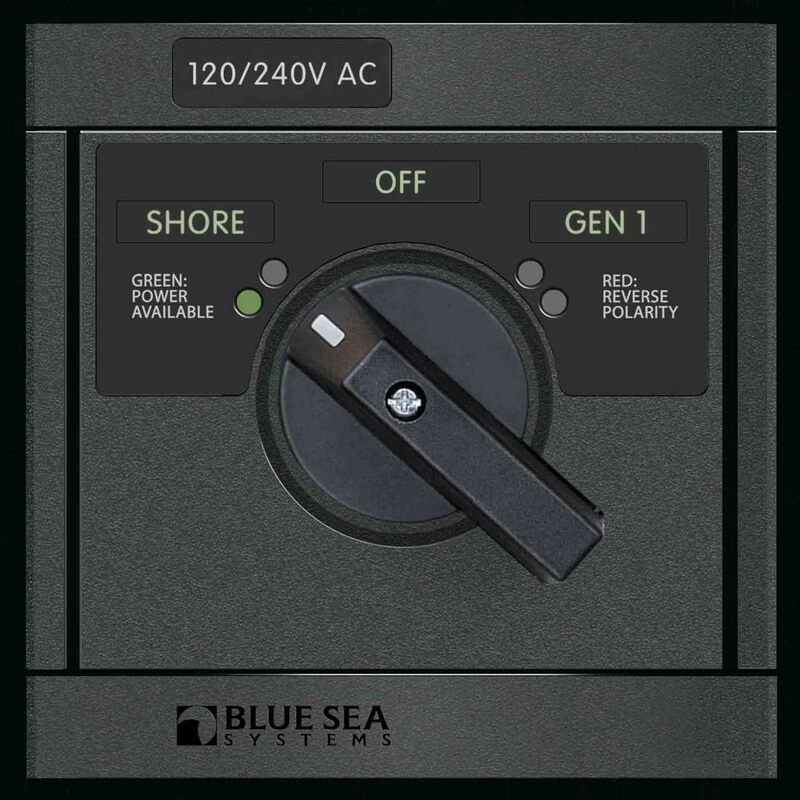

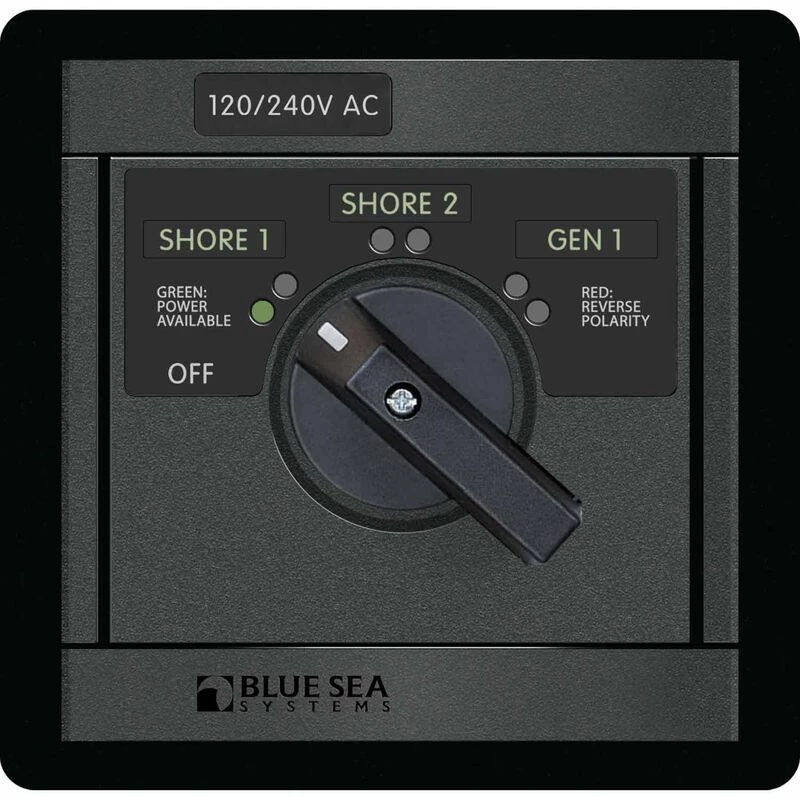

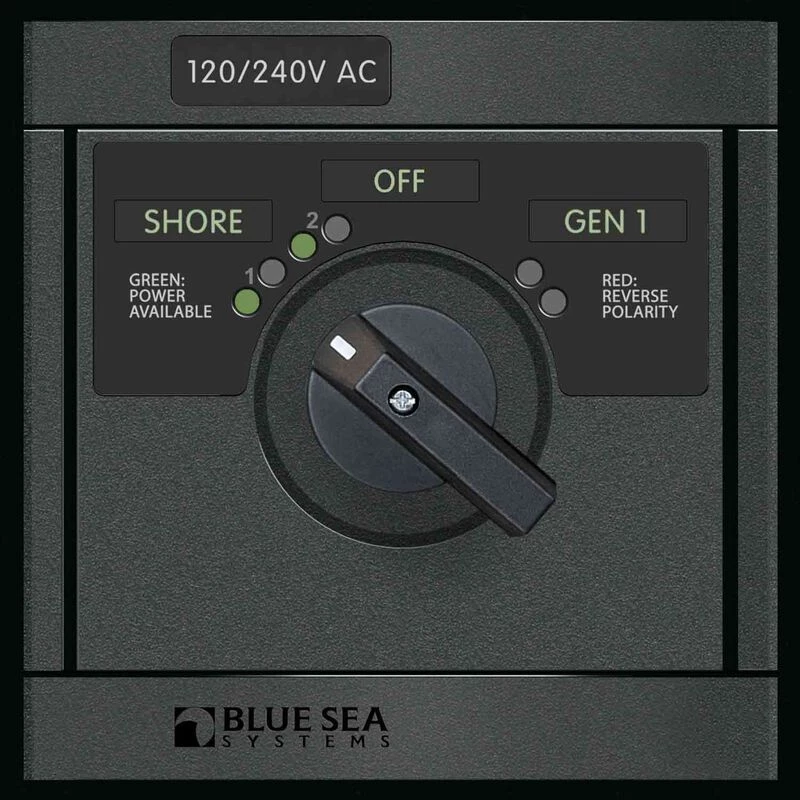

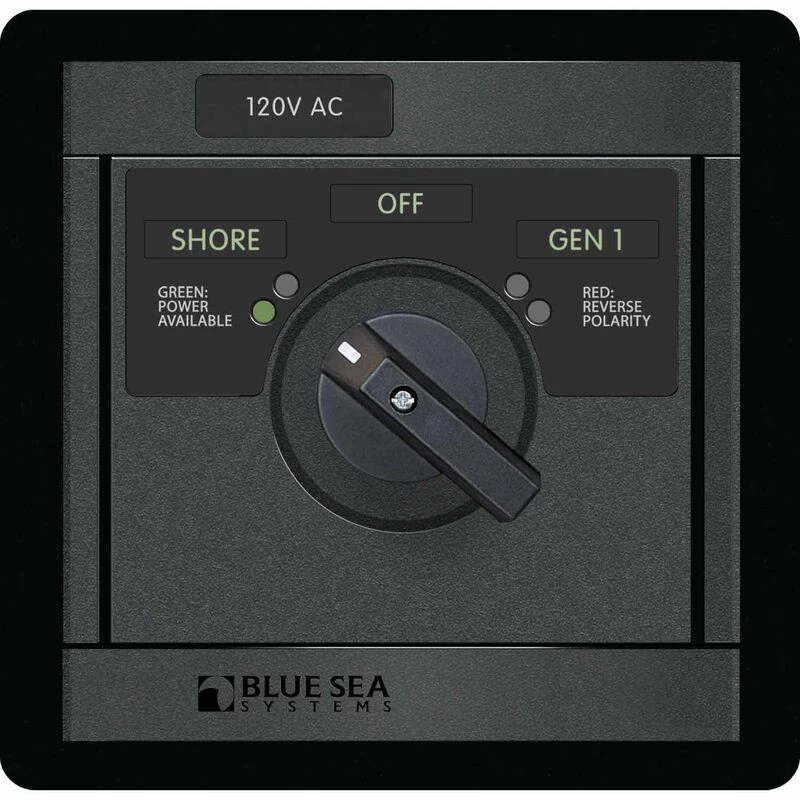

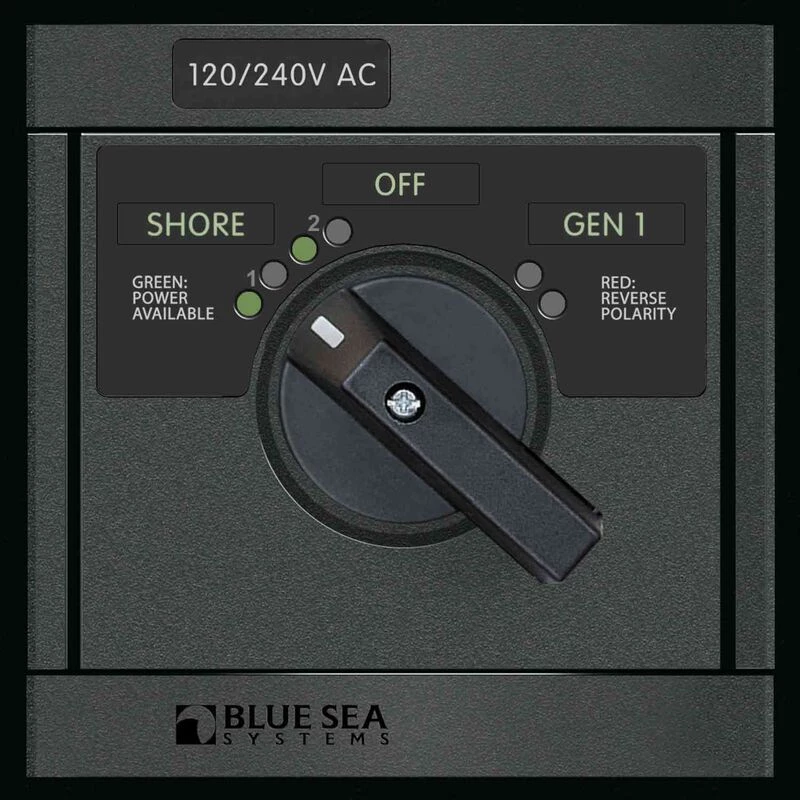

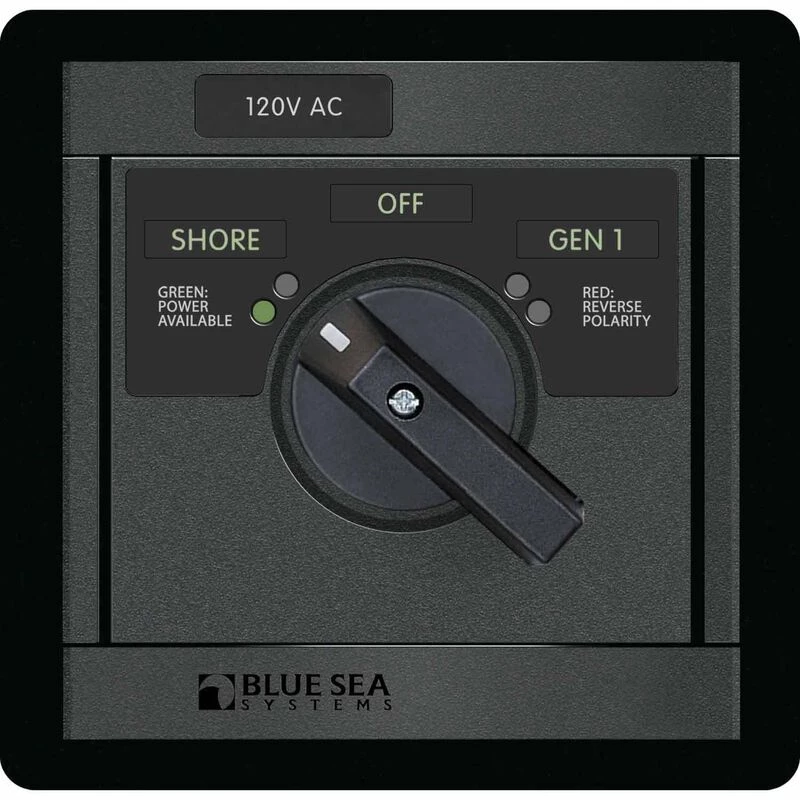

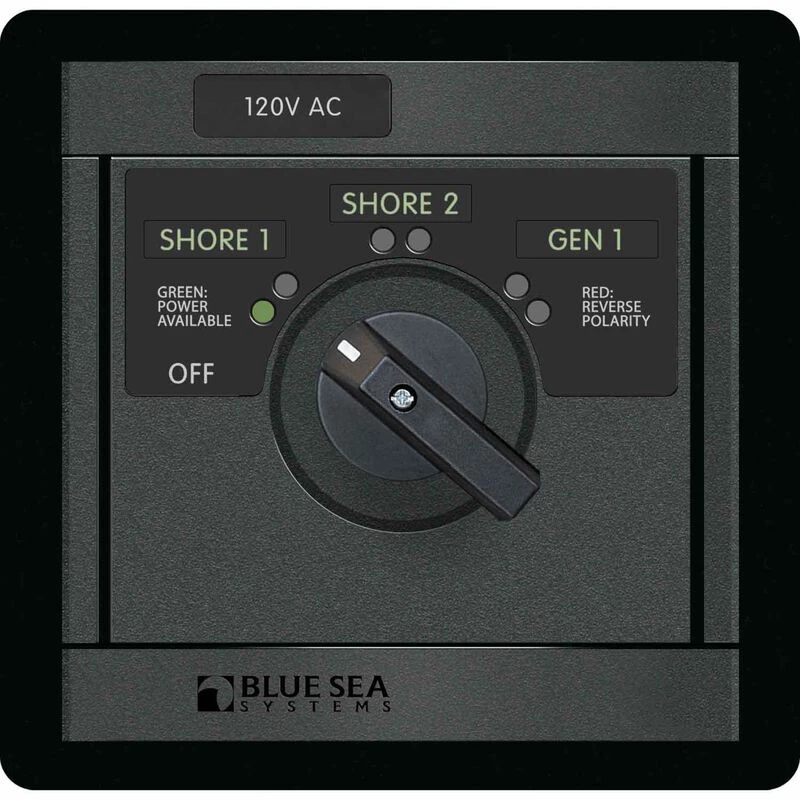

BLUE SEA SYSTEMS AC Rotary Selector Switches

Compact rotary switch panel panels that separate AC current loads and are compatible with 360 panels

Two sources of AC power, if connected, create a very dangerous situation. Blue Sea Systems rotary switches provide a safe method of controlling multiple sources of AC power. Ideal for boats with AC generators, inverters or multiple shore power connections with circuit protection already in place. These compact switches prevent two sources of AC current from powering the same circuit simultaneously. Heavy-duty contacts and positive step cam mechanisms offer smooth contact closure. Choose a switch to handle 2 or 3 power sources depending on the application; switches that can accept 3 sources also provide two load circuits out. These compact panels can be used alone to save space, or because they share same module design as Blue Sea Systems 360 panels they can incorporated into an existing 360 panel. Manage AC power safely with one of these compact selector switches.

Key Features

• Safely switches 2 or 3 AC power sources
• Compact footprint allows easy installation
• Smooth step cam mechanism for intuitive, indexed switching
• Compatible with 360 panels
• Requires circuit protection to be provided elsewhere
• Heavy duty industrial quality switch
• Lifetime

Specifications	1480	1481	1482	1483	1487	1488	1489
Source Selection	2	2	3	2	2	3	2
Nominal Voltage	120/240V AC	120V AC	120V AC	120V AC	120/240V AC	120/240V AC	240V AC
Source In	3	2	3	2	2	3	3
Height	4 3/4″	4 3/4″	4 3/4″	4 3/4″	4 3/4″	4 3/4″	4 3/4″
Width	4 7/8″	4 7/8″	4 7/8″	4 7/8″	4 7/8″	4 7/8″	4 7/8″
Depth	4 1/2″	1 15/16″	2 3/8″	2 3/8″	3 5/8″	5 1/2″	3″
Documents	Instructions	Instructions	Instructions	Instructions	Instructions	Instructions	Instructions

360 Panel Instructions
