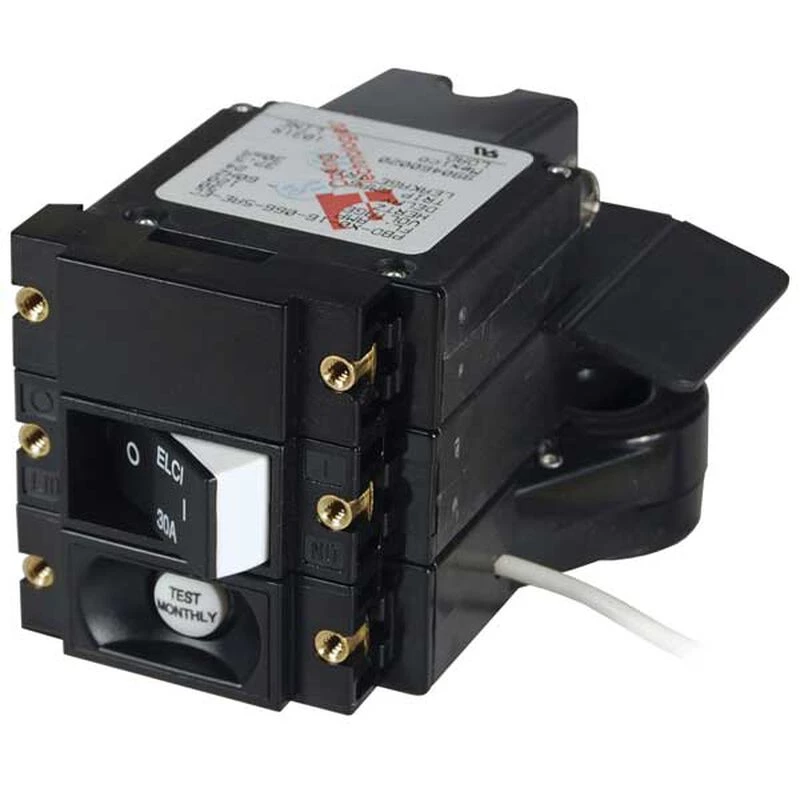

BLUE SEA SYSTEMS A-Series ELCI Main 30A Circuit Breaker, Double Pole 120V AC

Protect passengers and swimmers by adding an ELCI breaker to your 360 panel

Equipment Leakage Circuit Interrupter (ELCI) breakers protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock. A ground failure in an appliance (ground fault) or a loose grounding wire (faulty ground) can create a dangerous and possibly life threatening situation. Current if leaked into the water can paralyze swimmers causing them to drown. The risk is significantly higher in fresh or brackish water.

Blue Sea Systems designed this A-Series ELCI main breaker to trip if there is an imbalance in current between hot and neutral conductors caused by a faulty ground or ground fault. These breakers are compatible with Blue Sea Systems 360 panels and SMS enclosures. Installation of an ELCI breaker, when installed following their guidelines, meets ABYC E-11 requirements.

Key Features

• Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
• Compatible with 360 panels and SMS enclosures
• Breaker has Trip-free feature and cannot be held in ON position when fault is detected
• Meets ABYC E-11 regulation
• Lifetime warranty

Specifications

• Amperage: 30A
• Actuator Style: Flat Rocker
• Maximum Voltage: 240V per pole, 120V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic- trip free
• Interrupt Capacity: 5000A
