BLUE SEA SYSTEMS 8-Position AC Panel

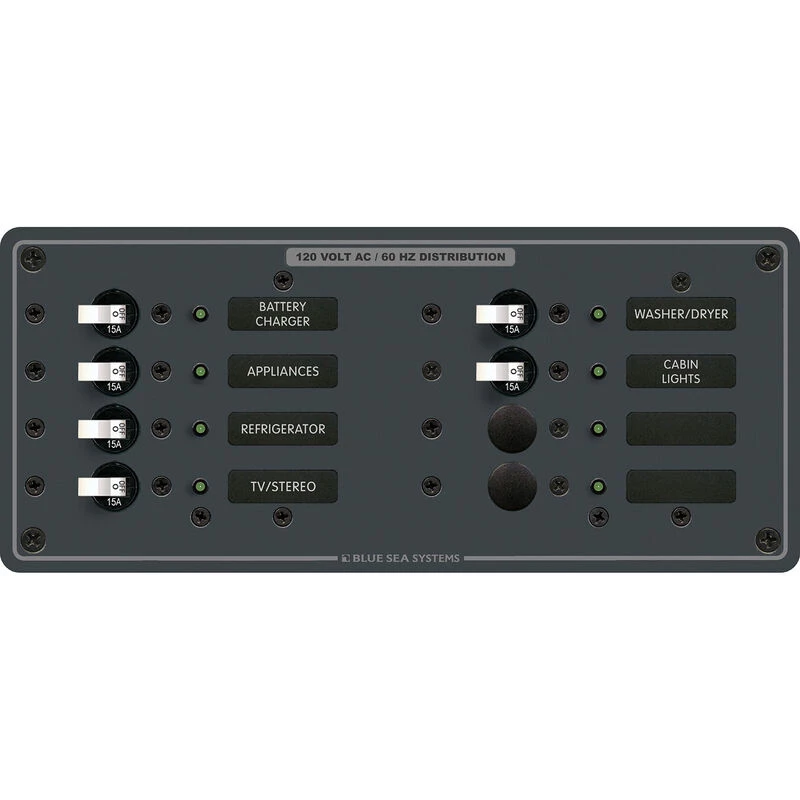

A traditional metal AC branch circuit breaker panel

Blue Sea Systems Panels reflect the quality and attention to detail that premier yacht designers and builders specify for the finest custom and production yachts, as well as commercial vessels worldwide. These panels are cut from heavy 1/8″ 5052 aluminum alloy and coated with a two-part polyurethane slate finish to ensure that each panel will add a handsome, professional touch to your boat’s electrical system. Blue Sea Systems offers a wide variety of compatible breakers to make these panels an easy choice for users and installers alike.

Ideal for adding AC circuits to an existing system or as a dedicated AC branch panel when main AC switching is controlled from a separately panel, this panel comes pre-wired for easy installation with hot, neutral, and safety ground bus bars already installed. Six pre-installed 15A A-series breakers are feed AC branch circuits; two positions are left open for customization or expansion. All breakers combine switching and circuit protection and are trip-free and cannot be held in the ON position when a fault is detected. A green LED at all positions indicates switch is ON. Large format labels are backlit for visibility in low or no light conditions. 30 commonly used AC labels are included.

Key Features

• Pre-wired with hot, neutral and ground buses installed
• Traditional aluminum plate structure will match many pre-existing panels
• Pre-installed 15A A-series single pole breakers for branch circuits
• Two open positions provide room for customization or future expansion
• Trip-free feature prevents breaker from being held in ON position when a fault is detected
• LED indicator lights note ON position
• Includes basic AC label set
• Lifetime warranty

Specifications

• Positions: 8 AC h
• Maximum Amperage: 100A
• Voltage: 120V AC
• Switch Rating:  15A
• Dimensions: 4 1/2″H x 10 1/2″W x 2 1/2″D
