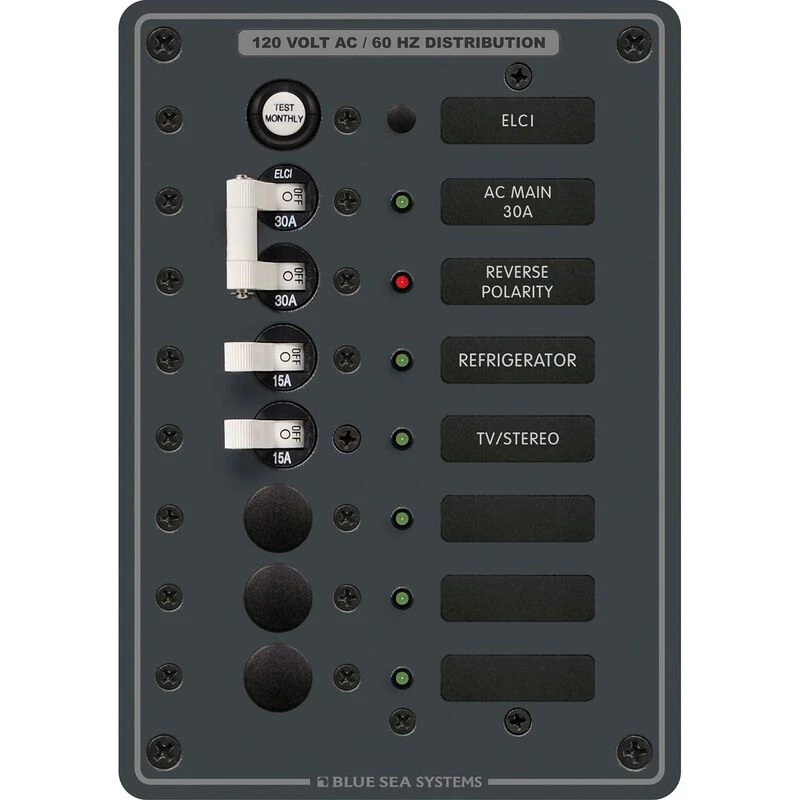

BLUE SEA SYSTEMS 2-Position ELCI Main 30A, 2 Poles

Protect passengers and swimmers by adding an ELCI in a traditional metal panel

Equipment Leakage Circuit Interrupter (ELCI) panels protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock caused by a ground fault or a faulty ground. This is an especially dangerous situation in fresh or brackish water. Blue Sea Systems designed this panel as a stand-alone with space for customization or expansion. It comes pre-wired with an A-Series 30A ELCI main breaker and two 15A branch breakers. LED lights  indicate reverse polarity and that a switch is in the ON position. Large format labels are backlit and easy to read. Installation of an ELCI panel meets ABYC E-11 when mounted within ten feet of AC shore power inlet.

Key Features

• Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
• Matches other Blue Sea Systems traditional metal panel installations
• Includes two 15A single pole branch breakers
• Breakers have Trip-free feature and cannot be held in ON position when fault is detected
• Meets ABYC E-11 regulation when installed within guidelines
• Lifetime warranty

Specifications

• Amperage: 30A
• Actuator Style: Flat Rocker
• Maximum Voltage: 240V AC, 120V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic- trip free
• Interrupt Capacity: 5000A

Instructions Panel

Instructions ELCI Breaker

Cutout Template
