BLUE SEA SYSTEMS 12V DC Panels

A modular electrical panel that will adapt to the changing needs of your boat

Blue Sea Systems 360 panels are known for their customization qualities. Each DC panel features an interchangeable modular design with open architecture and flexible layouts that eliminate custom engineering and metal fabrication. They can be modified for future updates and offer a flexible panel orientation. Modules are available for numerous applications (see link below). Common to each panel are flat rocker actuators that have a modern appearance and protection against accidental switching. Other features include square-format labeling that’s easy to change from the front of the panel, LED’s that indicate ON for all circuit positions and snap-on end plates to conceal mounting screws. Custom 360 System panels are available by Special Order.

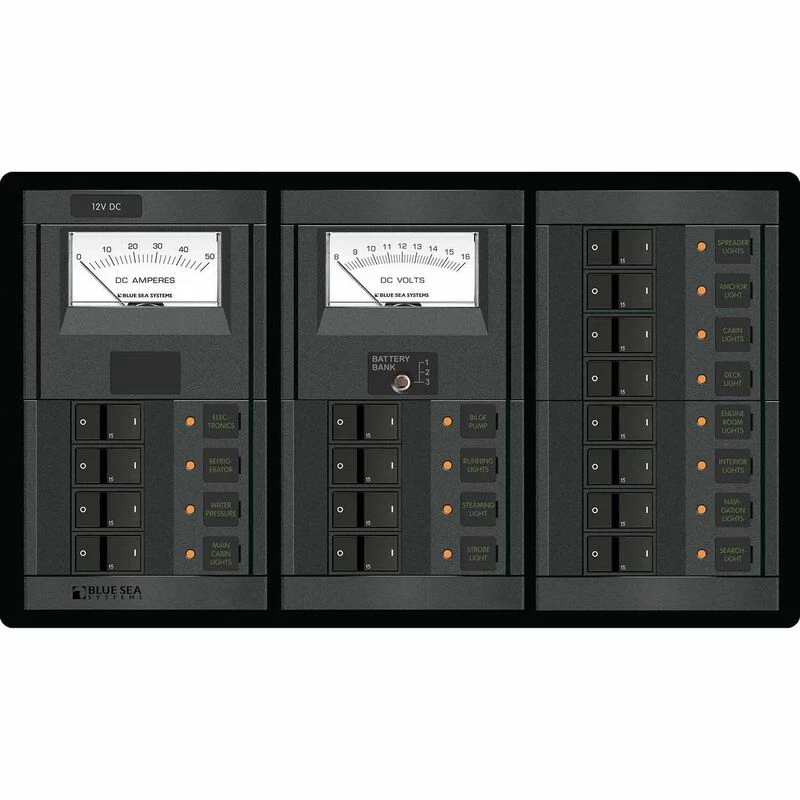

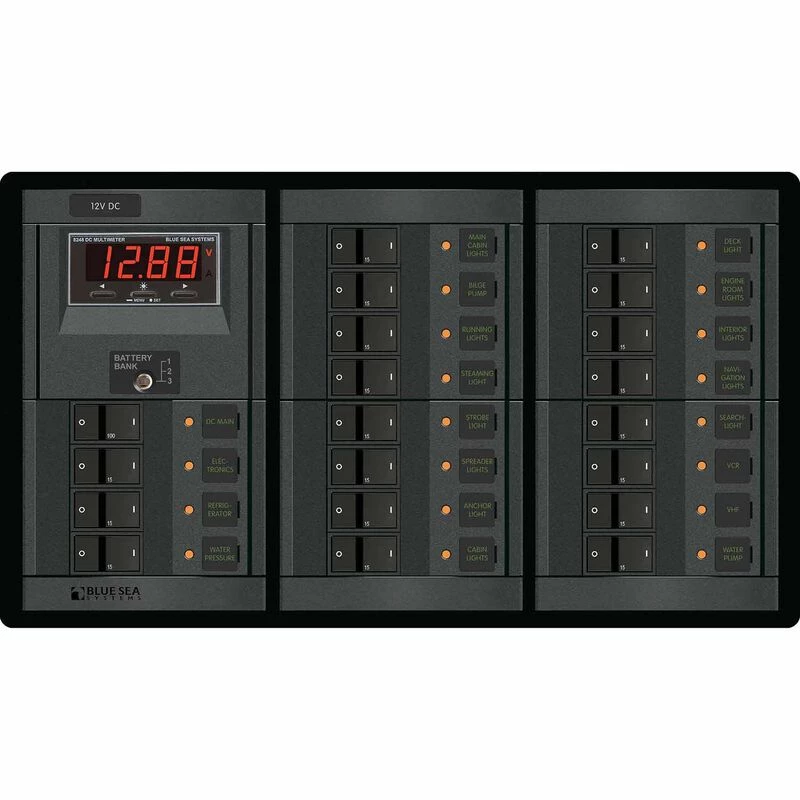

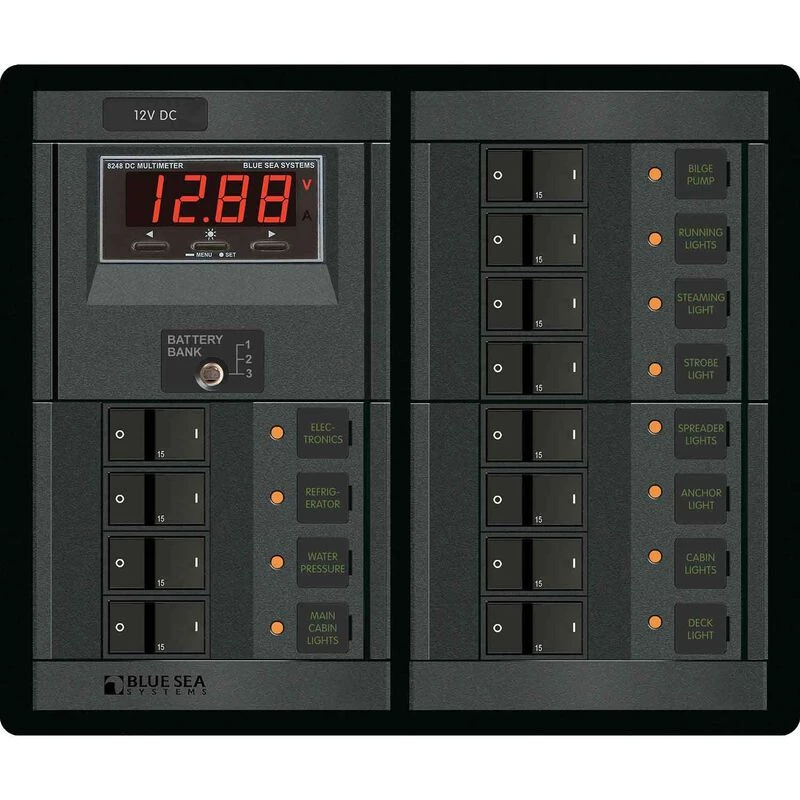

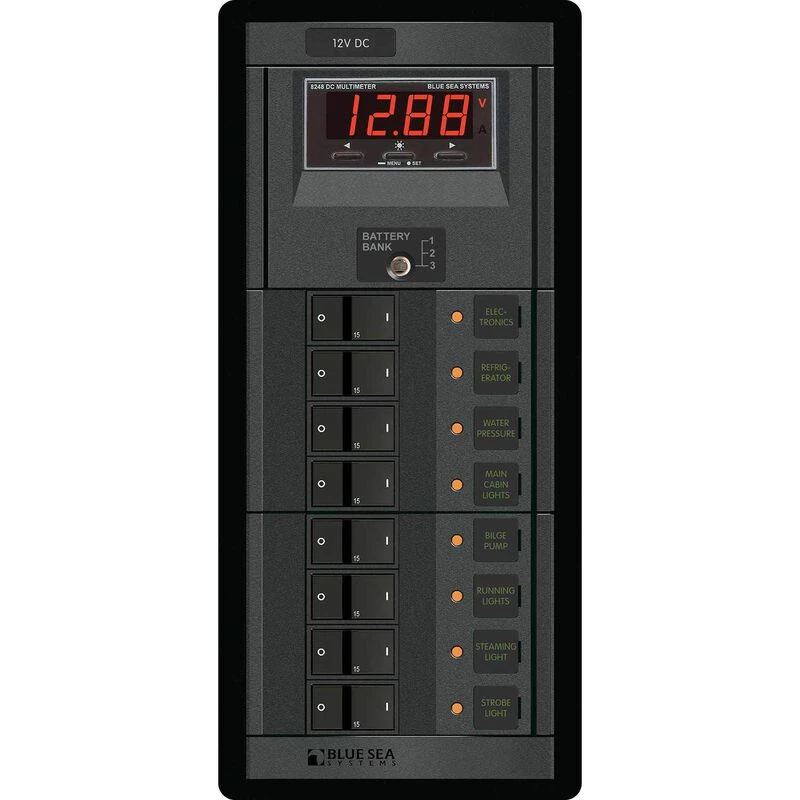

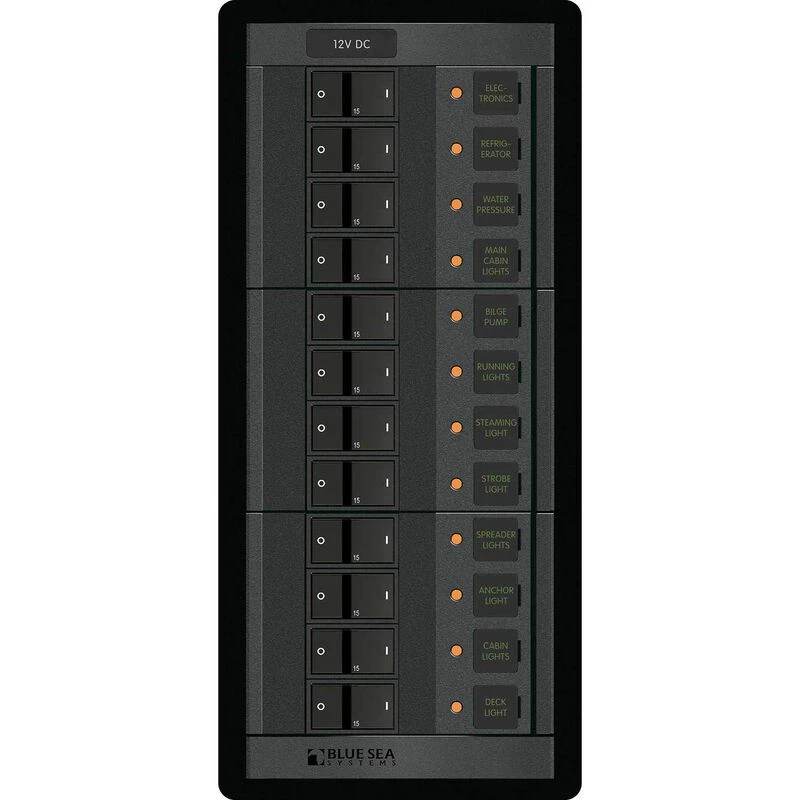

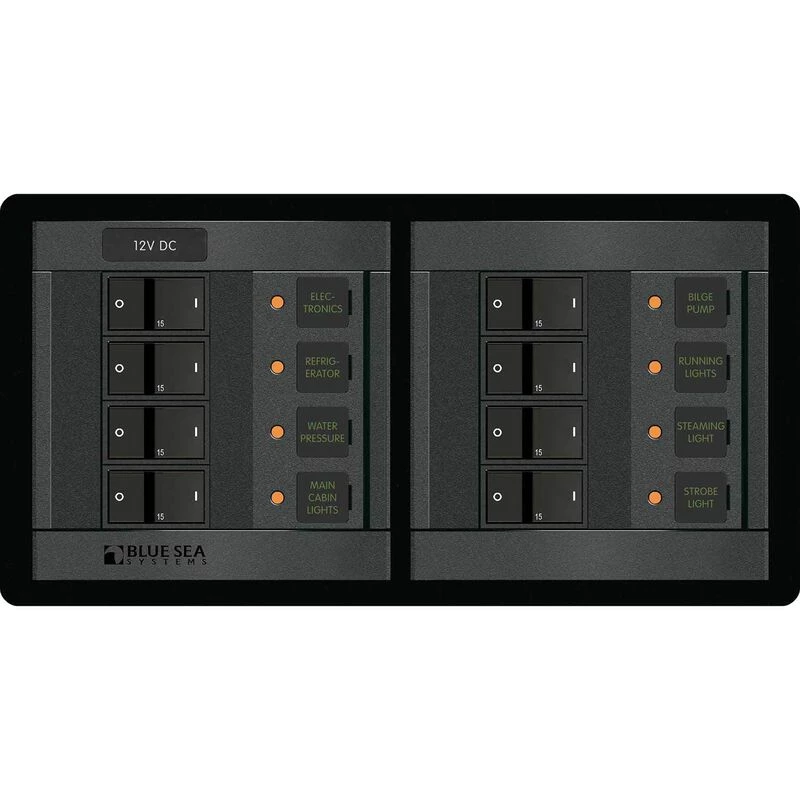

Blue Sea Systems also offers pre-configured 360 panels to meet the demands of common DC systems; because there are times a custom panel may not be ideal. Built on the same modular platform as the custom panels, these pre-assembled panels share the same features. Choose from 8, 12, 16, or 19 position panels depending on your application. 15A single pole flat rocker breakers are pre-installed and 30 Basic DC square labels are included with each panel. Many of the panels incorporate a digital multi-meter with alarm. The 16 position panel includes an analog volt meter and an analog ammeter. The 12 position (1223) and 8 position (1225) do not include a meter. This is a great way to adapt this modular technology to your boat and make future changes to the electrical system a breeze.

Key Features

• Modular design allows re-configuring panel to match changes in the electrical system without panel replacement
• Flexible orientation makes installation easier
• Breakers are trip-free and cannot be held in the ON position when a fault is detected
• Wide selection of modules available (see link below)
• Backlit labels for low or no light visibility
• LED indicator lights note ON position
• Includes basic label kit (30 square labels)
• Lifetime warranty

Specifications

• Positions: 8, 12, 16, 19
• Maximum Amperage: 100A (50A for 1201)
• Maximum voltage: 12V DC
• Breakers: 15A single pole
• Dimensions 1201: 7 3/4″H x 13 5/8″W x 3″D
• Dimensions 1217: 7 3/4″H x 9 1/4″W x 4″D
• Dimensions 1221: 7 3/4″H x 13 5/8″W x 4″D
• Dimensions 1223: 10 3/4″H x 4 7/8″W x 3″D
• Dimensions 1225: 4 3/4″H x 9 1/4″W x 3″D
• Dimensions 1227: 10 3/4″H x 4 7/8″W x 4″D
