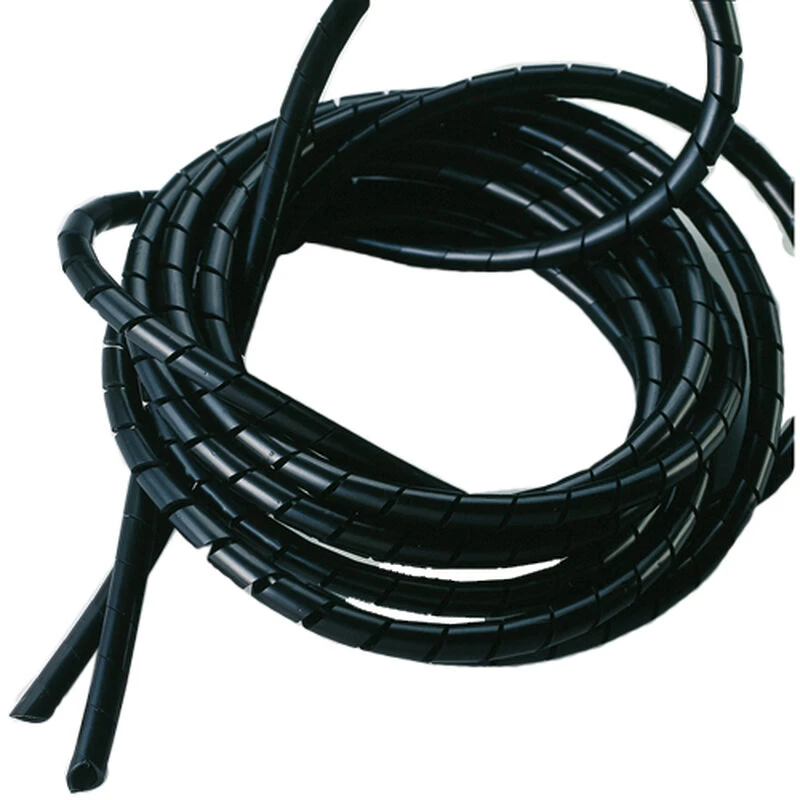

ANCOR Marine Grade Spiral Wrap

Marine Grade Spiral Wrap permits flexible routing of cable harnesses, provides abrasion protection for wire and cable, and allows lead outs at any point for the greatest ease of installation. Sold either by the foot (in continuous lengths up to 100′) or in a 10′ or 5′ package.

Wire Bundling per ABYC Guidelines

ABYC (the American Boat and Yacht Council) states: Conductors that may be exposed to physical damage shall be protected by loom, conduit tape, raceways or other equivalent protection. When AC and DC conductors are run together, the AC conductors shall be sheathed, bundled, or otherwise kept separate from the DC conductors. Loom used to cover conductors shall be self-extinguishing. The base product (or resin) shall be classified as V-2 or better, in accordance with UL 94, Tests for Flammability of Plastic Materials.
