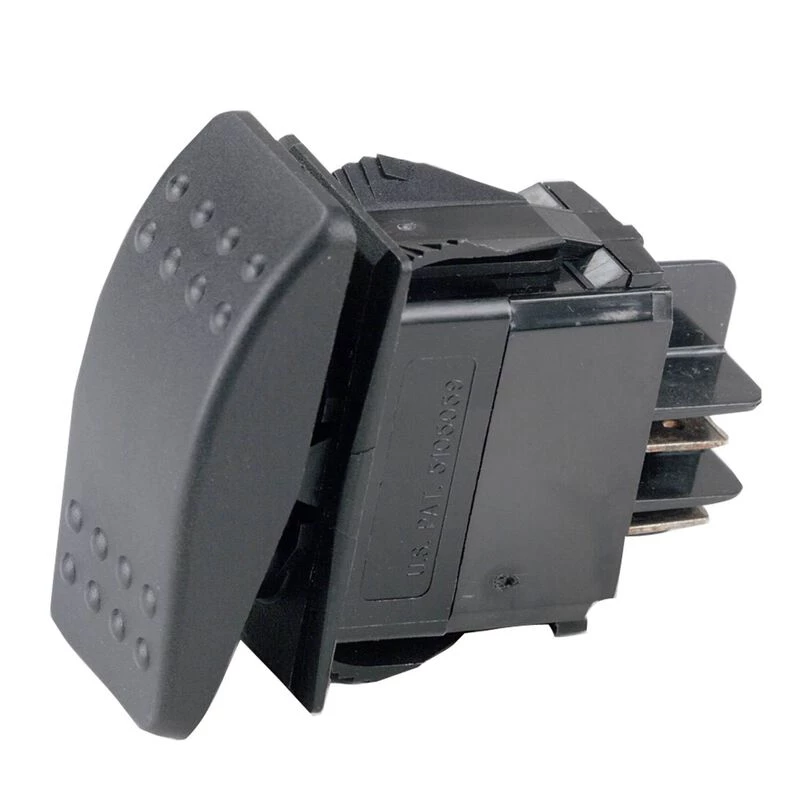

ANCOR Marine Grade Electrical Sealed Rocker Switch, Double Pole/Single Throw, Constant On / Constant Off

A sealed rocker DPST switch that is able to stand up to a washdown

Ancor designed their rocker switches to be out in the elements, but with the looks that fit anywhere. This double pole single throw switch will control two circuits in a constant ON or constant OFF position; examples being navigation lights or lighting circuits. With a IP66/IP67 rating, these switches will handle the spray from a wave or a hose. Ignition protection enables them to be installed in the engine room of gasoline powered boats.

Key Features

• IP66/IP67 rating and will stand up to spray or immersion
• Rocker style switch is easy to operate with wet or gloved hands
• Designed to stand alone or as part of a bank of switches
• Double Pole Single Throw controls 2 circuits
• Ignition protected for installation in engine rooms of gasoline powered boats

Specifications

• Switch Type: DPST (double pole, single throw)
• Positions: 2
• Amperage: 20A (15A @ 125V AC, 10A @250V AC)
• Voltage: 12V
• Cable Size: N/A
• Conductors: 4
• Material: nylon case with bras contacts
• Dimensions: 15/16″W x 2 7/8″L x 1 9/16″ D

Dimensional Drawing
